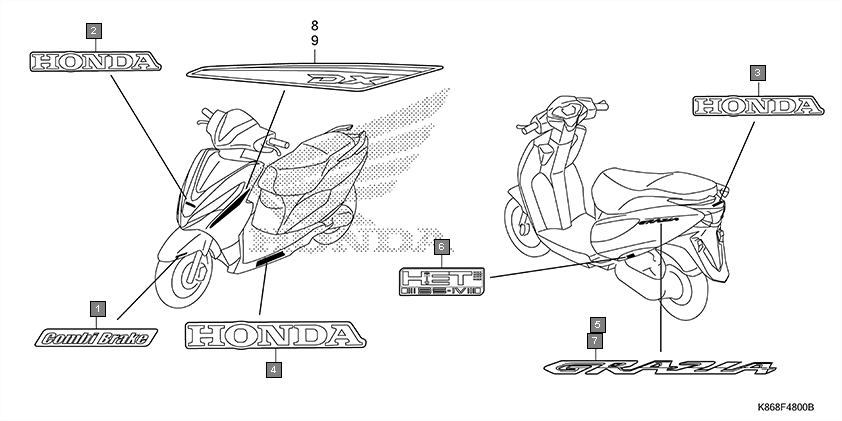

Scooters Grazia SCV125SK Frame Mark
Ref.No. Part No. Description Oty
1 86611K43960ZA MARK(COMBI BRAKE) *TYPE1* (R. SIDE ONLY) 1
2 86611K43900ZB MARK(COMBI BRAKE) *TYPE1* 1
3 86611K43900ZA MARK(COMBI BRAKE) *TYPE2* 1
4 86101K86D00ZA MARK, HONDA(70MM) *TYPE1* 1
5 86102K86D00ZA MARK, HONDA(80MM) *TYPE1* 1
6 86103K86D00ZE MARK, HONDA(185MM) *TYPE2* 2
7 86103K86D00ZA MARK, HONDA(185MM) *TYPE6* 2
8 86103K86D00ZC MARK, HONDA(185MM) *TYPE4* 2
9 86103K86D00ZB MARK, HONDA(185MM) *TYPE5* 2
10 86103K86D00ZD MARK, HONDA(185MM) *TYPE3* 2
11 86103K86D00ZF MARK, HONDA(185MM) *TYPE1* 2
12 86103K86D40ZA MARK, HONDA(185MM) *TYPE1* 2
13 86832K86D00 EMBLEM, L. BODY COVER (L. SIDE) 1
14 86833K43900ZA MARK, HET BS 4 *TYPE1* (R SIDE ONLY) 1
15 86831K86D00 EMBLEM, R. BODY COVER (R. SIDE) 1
16 86641K86D40ZC STRIPE, R. SIDE COVER UPPER *TYPE3* 1
17 86641K86D40ZE STRIPE, R. SIDE COVER UPPER *TYPE1* 1
18 86641K86D40ZA STRIPE, R. SIDE COVER UPPER *TYPE5* 1
19 86641K86D40ZB STRIPE, R. SIDE COVER UPPER *TYPE4* 1
20 86641K86D40ZD STRIPE, R. SIDE COVER UPPER *TYPE2* 1
21 86642K86D40ZD STRIPE, L. SIDE COVER UPPER *TYPE2* 1
22 86642K86D40ZE STRIPE, L. SIDE COVER UPPER *TYPE1* 1
23 86642K86D40ZC STRIPE, L. SIDE COVER UPPER *TYPE3* 1
24 86642K86D40ZA STRIPE, L. SIDE COVER UPPER *TYPE5* 1
25 86642K86D40ZB STRIPE, L. SIDE COVER UPPER *TYPE4* 1
