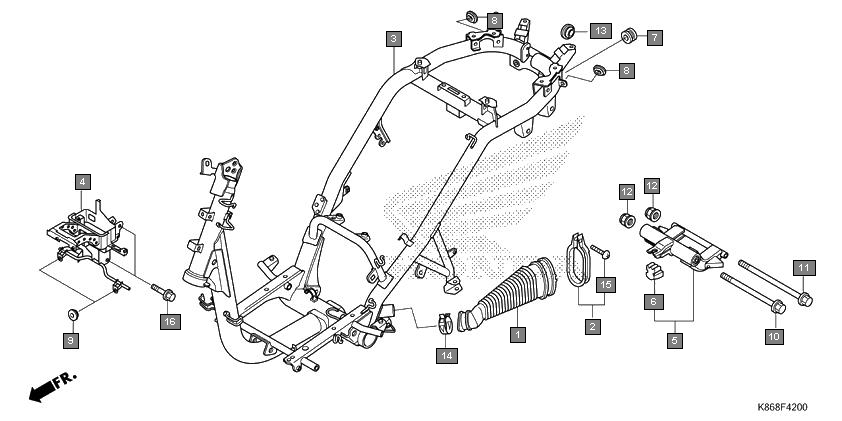

Scooters Grazia SCV125SK Frame Frame body
Ref.No. Part No. Description Oty
1 11345K24G00 DUCT, L. COVER 1
2 11346KCW870 BAND, L. COVER DUCT 1
3 50100K86D00 BODY COMP., FRAME 1
4 50330K86D00 STAY COMP., FR. COVER 1
5 50350K24G00 LINK ASSY., ENGINE HANGER 1
6 50352GW0730 RUBBER, LINK STOPPER 1
7 64216GJ2730 RUBBER, SCREEN SETTING 1
8 83551GE2000 GROMMET, AIR CLEANER CASE 2
9 83601MN5000 GROMMET, SIDE COVER 2
10 90105KJ9000 BOLT, FLANGE, 10X210 1
11 90106GCC000 BOLT, FLANGE, 10X238 1
12 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 2
13 90862KWPG00 PLUG, END 1
14 91405KPL900 CLAMP, TUBE(D29) 1
15 93500040250G SCREW, PAN, 4X25 1
16 957010804008 BOLT, FLANGE, 8X40 2
