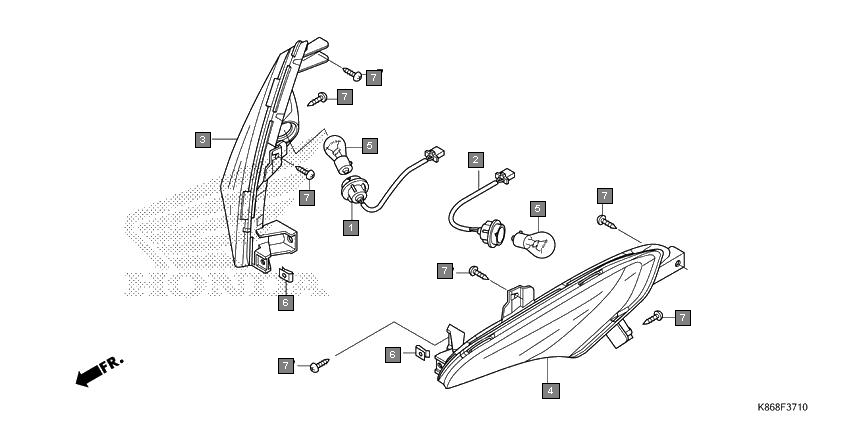

Scooters Grazia SCV125SK Frame Front winker
Ref.No. Part No. Description Oty
1 33410K86D01 SOCKET COMP., R.(FIEM) 1
2 33415K86D01 SOCKET COMP., L.(FIEM) 1
3 33420K86D01 WINKER COMP., R. FR.(FIEM) 1
4 33470K86D01 WINKER COMP., L. FR.(FIEM) 1
5 34904KRY971 BULB, WINKER LIGHT(PY21W)(AMBER)(12V 21W) 2
6 90344KRP900 NUT, CLIP, 5MM 2
7 9390335320 SCREW, TAPPING, 5X16 7
