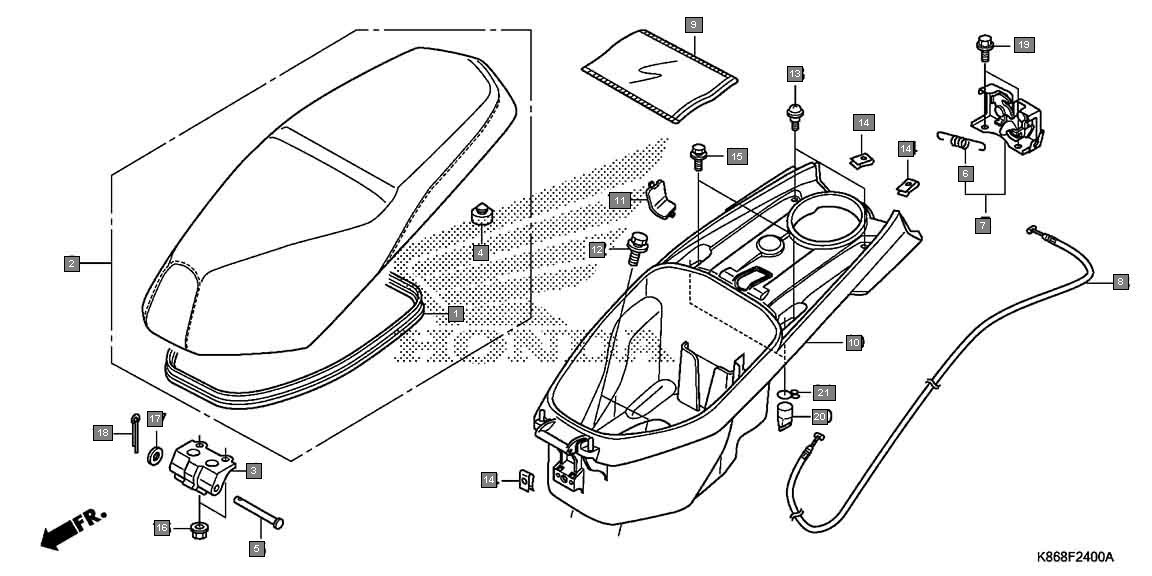

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 77115K24900 | RUBBER, SEAL | 1 |
| 2 | 77200K86D01 | SEAT COMP., DOUBLE | 1 |
| 3 | 77201K24900 | HINGE, SEAT | 1 |
| 4 | 77206KG8900 | RUBBER, SEAT SETTING | 2 |
| 5 | 77215K24900 | PIN, SEAT HINGE | 1 |
| 6 | 77234K86D00 | SPRING, SEAT LOCK | 1 |
| 7 | 77235K86D00 | CATCH COMP., SEAT | 1 |
| 8 | 77251KPL900 | BAG, SERVICE BOOK | 1 |
| 9 | 81250K86D00 | BOX, LUGGAGE | 1 |
| 10 | 81255KZK900 | COVER, CARBURETOR MAINTENANCE | 1 |
| 11 | 90107KWP900 | BOLT-WASHER, 8X16 | 2 |
| 12 | 90115KW7900 | SCREW, VISOR SPECIAL SETTING | 2 |
| 13 | 90677KANT00 | NUT, CLIP, 5MM | 4 |
| 14 | 934040601207 | BOLT-WASHER, 6X12 | 2 |
| 15 | 9405006000 | NUT, FLANGE, 6MM | 2 |
| 16 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
| 17 | 9420116180 | PIN, SPLIT, 1.6X18 | 1 |
| 18 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
| 19 | 17234KCC941 | TUBE, AIR CLEANER DRAIN | 2 |
| 20 | 90653KWPF00 | CLIP, TUBE(B12.5) | 2 |
| 21 | 77240K86D31 | CABLE COMP., SEAT LOCK | 1 |
