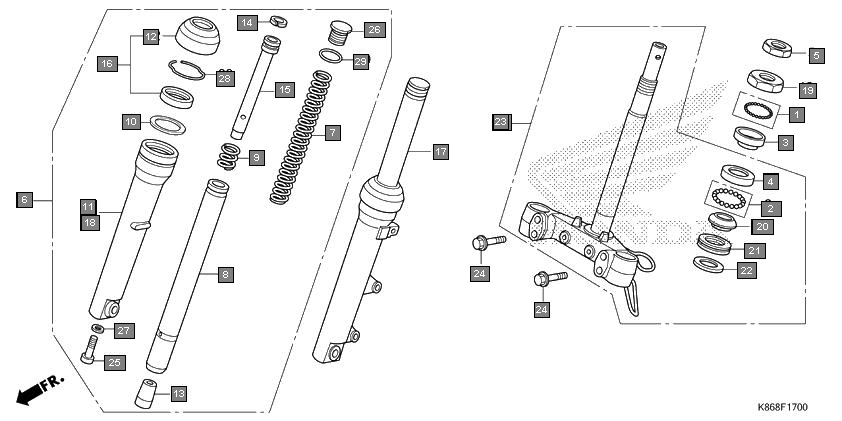

Scooters Grazia SCV125SK Frame Front fork/steering stem
Ref.No. Part No. Description Oty
1 06530KEMP00 BALL SET, STEEL, #5X26 1
2 06531KEMP00 BALL SET, STEEL, #8X19 1
3 50301KEM900 RACE, STEERING UPPER BALL 1
4 50302268010 RACE, STEERING BOTTOM BALL 1
5 50302KWPD00 RACE, STEERING BOTTOM BALL 1
6 50306KPL900 NUT, STEERING STEM LOCK 1
7 51400K86D11 FORK ASSY., R. FR.(ENDURANCE) 1
8 51400K86D01 FORK ASSY., R. FR.(ENDURANCE) 1
9 51401K86D01 SPRING, FR. FORK(ENDURANCE) 2
10 51410K86D01 PIPE COMP., FR. FORK (ENDURANCE) 2
11 51412K86D01 SPRING, REBOUND(ENDURANCE) 2
12 51413K23902 RING, BACK UP 2
13 51420K86D01 CASE, R. FR. BOTTOM(ENDURANCE) 1
14 51420K86D11 CASE, R. FR. BOTTOM(ENDURANCE) 1
15 51425KTE602 SEAL, DUST(ETPL) 2
16 51432K23902 PIECE, OIL LOCK 2
17 51437K23902 RING, PISTON 2
18 51440K86D01 PIPE, SEAT(ENDURANCE) 2
19 51490KTE602 SEAL SET, FR. FORK(ETPL) 2
20 51500K86D11 FORK ASSY., L. FR.(ENDURANCE) 1
21 51500K86D01 FORK ASSY., L. FR.(ENDURANCE) 1
22 51520K86D11 CASE, L. FR. BOTTOM(ENDURANCE) 1
23 51520K86D01 CASE, L. FR. BOTTOM(ENDURANCE) 1
24 53211KEM900 RACE, STEERING TOP CONE 1
25 53212250010 RACE, STEERING BOTTOM CONE 1
26 53212KWPD00 RACE, STEERING BOTTOM CONE 1
27 53214250000 DUST SEAL, STEERING HEAD 1
28 53215KPL900 WASHER, STEERING HEAD DUST SEAL 1
29 53219K24910 STEM SUB ASSY., STEERING 1
30 53219K24900 STEM SUB ASSY., STEERING 1
31 90101KVTD00 BOLT, FLANGE, 10X42 4
32 90116K23902 BOLT, SOCKET, 8MM 2
33 90123K86D01 BOLT A, FR. FORK 2
34 90544K23902 WASHER, SPECIAL, 8MM 2
35 90651K23902 RING, OIL SEAL STOP 2
36 91351K23902 O-RING 2
