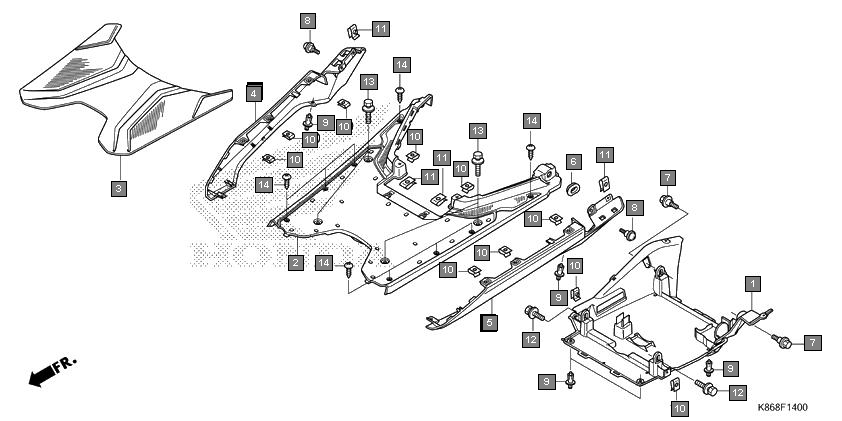

Scooters Grazia SCV125SK Frame Under cover/floor step
Ref.No. Part No. Description Oty
1 50621K86D00ZA COVER, UNDER BLACK *NH1* 1
2 64310K86D00ZA STEP, FLOOR BLACK *NH1* 1
3 64315K86D00 MAT, FLOOR 1
4 64325K86D30ZC COVER SET, R. FLOOR SIDE(WL) *TYPE5* 1
5 64325K86D30ZD COVER SET, R. FLOOR SIDE(WL) *TYPE4* 1
6 64325K86D30ZA COVER SET, R. FLOOR SIDE(WL) *TYPE7* 1
7 64325K86D30ZB COVER SET, R. FLOOR SIDE(WL) *TYPE6* 1
8 64325K86D30ZF COVER SET, R. FLOOR SIDE(WL) *TYPE2* 1
9 64325K86D30ZE COVER SET, R. FLOOR SIDE(WL) *TYPE3* 1
10 64325K86D30ZG COVER SET, R. FLOOR SIDE(WL) *TYPE1* 1
11 64335K86D30ZD COVER SET, L. FLOOR SIDE(WL) *TYPE4* 1
12 64335K86D30ZA COVER SET, L. FLOOR SIDE(WL) *TYPE7* 1
13 64335K86D30ZE COVER SET, L. FLOOR SIDE(WL) *TYPE3* 1
14 64335K86D30ZG COVER SET, L. FLOOR SIDE(WL) *TYPE1* 1
15 64335K86D30ZF COVER SET, L. FLOOR SIDE(WL) *TYPE2* 1
16 64335K86D30ZC COVER SET, L. FLOOR SIDE(WL) *TYPE5* 1
17 64335K86D30ZB COVER SET, L. FLOOR SIDE(WL) *TYPE6* 1
18 83551GE2000 GROMMET, AIR CLEANER CASE 1
19 90111162000 BOLT, FLANGE, 6MM 2
20 90115KW7900 SCREW, VISOR SPECIAL SETTING 2
21 90116SP0003 CLIP, BUMPER SEAL 5
22 90344KRP900 NUT, CLIP, 5MM 10
23 90677KANT00 NUT, CLIP, 5MM 4
24 934040601208 BOLT-WASHER, 6X12 2
25 934040602008 BOLT-WASHER, 6X20 4
26 9390325380 SCREW, TAPPING, 5X16 8
