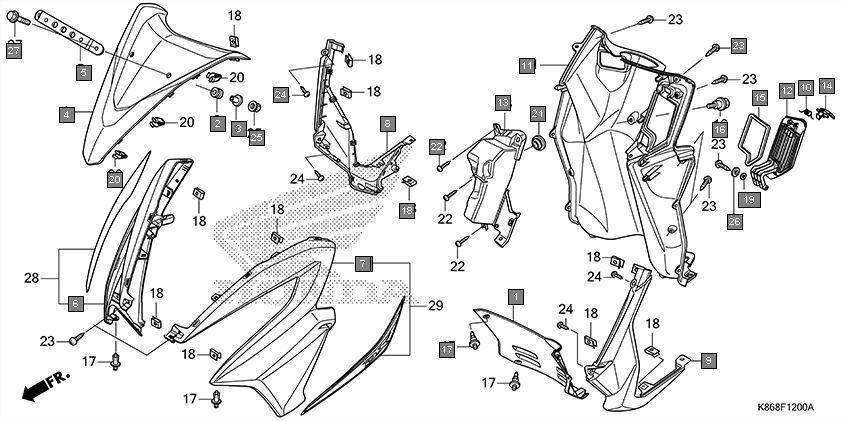

Scooters Grazia SCV125SK Frame Front cover
Ref.No. Part No. Description Oty
1 50623K86D00ZA COVER, FR. UNDER BLACK *NH1* 1
2 61103357000 RUBBER, FR. FENDER MOUNTING 2
3 61104428730 COLLAR, FR. FENDER(BLACK)..... (FOR RR.) 2
4 64301K86D00ZB COVER, FR. UPPER *NHA95M* SWORD SILVER METALLIC 1
5 64301K86D00ZA COVER, FR. UPPER MAT AXIS GRAY METALLIC*NH303M* 1
6 64301K86D00ZC COVER, FR. UPPER *NHA84P* PEARL NIGHTSTAR BLACK 1
7 64303KZKD20 STAY, FR. NUMBER PLATE 1
8 64304K86D00ZD COVER, R. SIDE UPPER PEARL AMAZING WHITE *NHB63P* 1
9 64304K86D00ZE COVER, R. SIDE UPPER PEARL NIGHTSTAR BLACK *NHA84P* 1
10 64304K86D00ZG COVER, R. SIDE UPPER PEARL SPARTAN RED *R382P* 1
11 64304K86D00ZF COVER, R. SIDE UPPER MAT MARVEL BLUE METALLIC *B227M* 1
12 64304K86D00ZA COVER, R. SIDE UPPER NEO ORANGE METALLIC *YR302M* 1
13 64304K86D00ZC COVER, R. SIDE UPPER MAT AXIS GRAY METALLIC *NH303M* 1
14 64305K86D00ZF COVER, L. SIDE UPPER MAT MARVEL BLUE METALLIC *B227M* 1
15 64305K86D00ZG COVER, L. SIDE UPPER PEARL SPARTAN RED *R382P* 1
16 64305K86D00ZD COVER, L. SIDE UPPER PEARL AMAZING WHITE *NHB63P* 1
17 64305K86D00ZC COVER, L. SIDE UPPER MAT AXIS GRAY METALLIC *NH303M* 1
18 64305K86D00ZE COVER, L. SIDE UPPER PEARL NIGHTSTAR BLACK *NHA84P* 1
19 64305K86D00ZA COVER, L. SIDE UPPER NEO ORANGE METALLIC*YR302M* 1
20 64306K86D00ZA COVER, R. SIDE LOWER BLACK *NH1* 1
21 64307K86D00ZA COVER, L. SIDE LOWER BLACK*NH1* 1
22 80162GFM970 SPRING, FUEL LID 1
23 81131K86D30ZA COVER, INNER *NH1* BLACK 1
24 81132K86D30ZA LID, L. INNER POCKET *NH1* BLACK 1
25 81133K86D30 POCKET, L. INNER 1
26 81138K86D30ZA KNOB, POCKET LID *NH1* BLACK 1
27 81291K86D00 SEAL, INNER COVER 1
28 90111KWP900 BOLT, INNER COVER 1
29 90116SP0003 CLIP, BUMPER SEAL 6
30 90344KRP900 NUT, CLIP, 5MM 11
31 90442KTED00 WASHER, WAVE 1
32 90666K59A11 CLIP, SNAP FITTING(PO) 5
33 90862KWPG00 PLUG, END 1
34 9390324480 SCREW, TAPPING, 4X16 3
35 9390325380 SCREW, TAPPING, 5X16 12
36 9390334380 SCREW, TAPPING, 4X12 4
37 9405006080 NUT, FLANGE, 6MM 2
38 9410108000 WASHER, PLAIN, 8MM 1
39 957010602507 BOLT, FLANGE, 6X25 2
40 64100K86D40ZE COVER SET, R. SIDE UPPER(WL) *TYPE1* 1
41 64100K86D40ZD COVER SET, R. SIDE UPPER(WL) *TYPE2* 1
42 64100K86D40ZA COVER SET, R. SIDE UPPER(WL) *TYPE5* 1
43 64100K86D40ZB COVER SET, R. SIDE UPPER(WL) *TYPE4* 1
44 64100K86D40ZC COVER SET, R. SIDE UPPER(WL) *TYPE3* 1
45 64200K86D40ZD COVER SET, L. SIDE UPPER(WL) *TYPE2* 1
46 64200K86D40ZB COVER SET, L. SIDE UPPER(WL) *TYPE4* 1
47 64200K86D40ZC COVER SET, L. SIDE UPPER(WL) *TYPE3* 1
48 64200K86D40ZE COVER SET, L. SIDE UPPER(WL) *TYPE1* 1
49 64200K86D40ZA COVER SET, L. SIDE UPPER(WL) *TYPE5* 1
