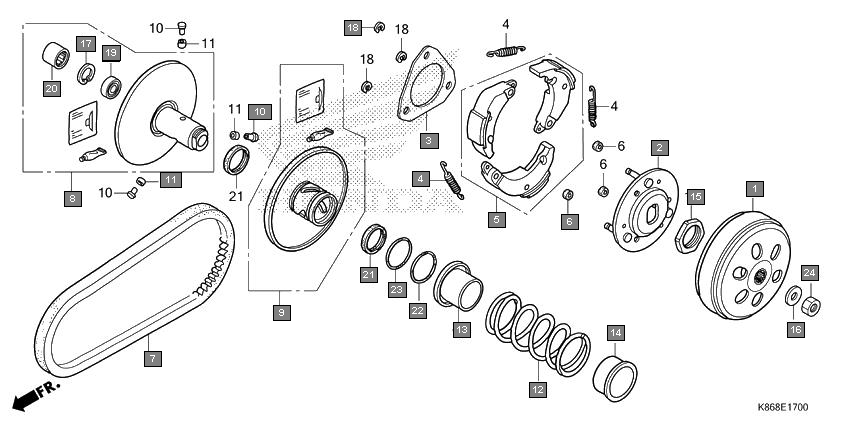

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 22100KWPD01 | OUTER COMP., CLUTCH(F.C.C.) | 1 |
| 2 | 22350KWPD01 | PLATE COMP., DRIVE | 1 |
| 3 | 22361KWPD00 | PLATE, CLUTCH SIDE | 1 |
| 4 | 22401KVB900 | SPRING, CLUTCH | 3 |
| 5 | 22535KWPH00 | WEIGHT SET, CLUTCH(F.C.C.) | 1 |
| 6 | 22804148000 | RUBBER, CLUTCH DAMPER | 3 |
| 7 | 23100K24901 | BELT, DRIVE(BANDO) | 1 |
| 8 | 23205KWPH00 | FACE SET, DRIVEN(F.C.C.) | 1 |
| 9 | 23224K24G00 | FACE SET, MOVABLE DRIVEN | 1 |
| 10 | 23225KSY900 | PIN, ROLLER GUIDE | 3 |
| 11 | 23226KVB900 | ROLLER, GUIDE | 3 |
| 12 | 23233K24900 | SPRING, DRIVEN FACE | 1 |
| 13 | 23237KWPD00 | COLLAR, SEAL | 1 |
| 14 | 23238KWP900 | COLLAR, SPRING | 1 |
| 15 | 90202KPL900 | NUT, SPECIAL, 28MM | 1 |
| 16 | 90441GY6940 | WASHER, 12.2X29X2.5 | 1 |
| 17 | 90601KWP900 | CIRCLIP, INTERNAL, 28MM | 1 |
| 18 | 90605166720 | CIRCLIP, 7MM | 3 |
| 19 | 91009KVY961 | BEARING, RADIAL BALL, 6902U(NSK) | 1 |
| 20 | 91004GGCG01 | BEARING, RADIAL BALL, 6902U | 1 |
| 21 | 91109KVY902 | BEARING, NEEDLE, 20X29X1(SCHAEFFLER) | 1 |
| 22 | 91211K24901 | SEAL, DRIVEN FACE, 34X39X3 | 2 |
| 23 | 91351642000 | O-RING, PINION CAP | 1 |
| 24 | 91351GR1000 | O-RING, 38.5X2 | 1 |
| 25 | 9403012200 | NUT, HEX., 12MM | 1 |
