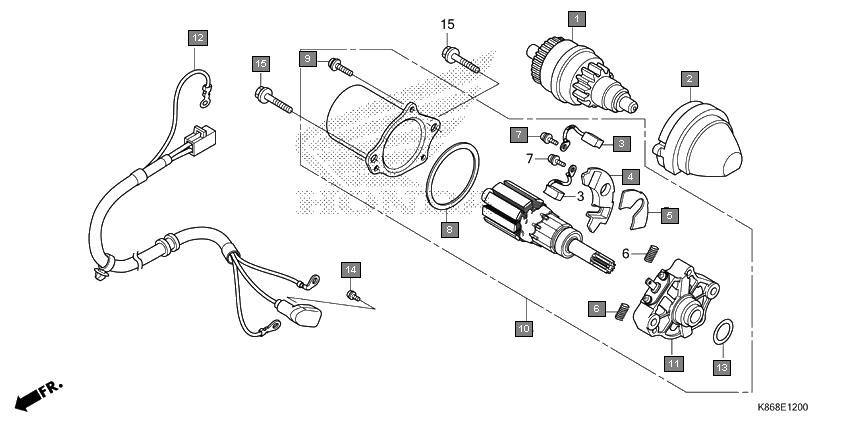

Scooters Grazia SCV125SK Engine Starting motor
Ref.No. Part No. Description Oty
1 28120KVB901 PINION ASSY., STARTER(14/40T) 1
2 28150KPL900 HOLDER COMP., STARTER PINION 1
3 31201K55601 BRUSH, CARBON 2
4 31202K55601 BRUSH HOLDER 1
5 31203K55601 INSULATOR 1
6 31204K55601 SPRING, BRUSH 2
7 31205K55601 SCREW, 4X6 2
8 31206K55601 PACKING(MITSUBA) 1
9 31207K55601 SCREW-WASHER, 5X12 3
10 31210KWPG12 MOTOR UNIT, STARTER(MITSUBA) 1
11 31214KWPG12 BRACKET COMP., FR. 1
12 32105K24921 HARNESS COMP., STARTING MOTOR 1
13 91309KEE630 O-RING 1
14 938920400808 SCREW-WASHER, 4X8 1
15 960010603500 BOLT, FLANGE, 6X35 2
