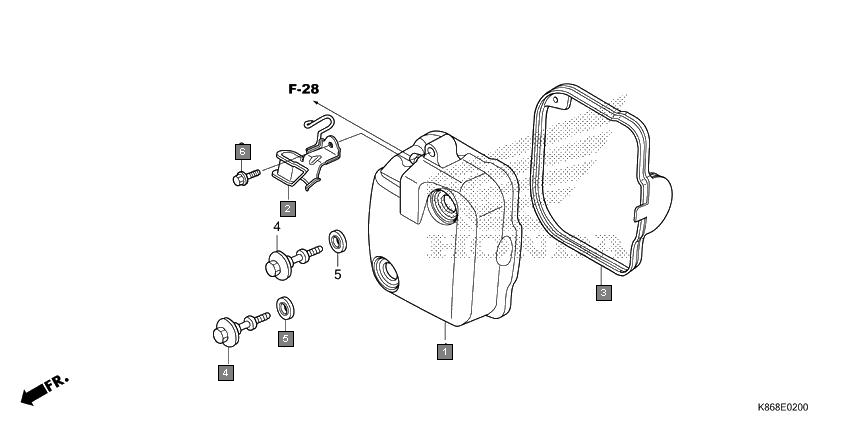

Scooters Grazia SCV125SK Engine Cylinder head cover
Ref.No. Part No. Description Oty
1 12310K86D00 COVER COMP., HEAD 1
2 12315K24900 CLAMPER COMP., THROTTLE CABLE 1
3 12391K24900 GASKET, HEAD COVER 1
4 90017KPL900 BOLT, HEAD COVER 2
5 90543MV9670 RUBBER, MOUNTING 2
6 960010601400 BOLT, FLANGE, 6X14 1
