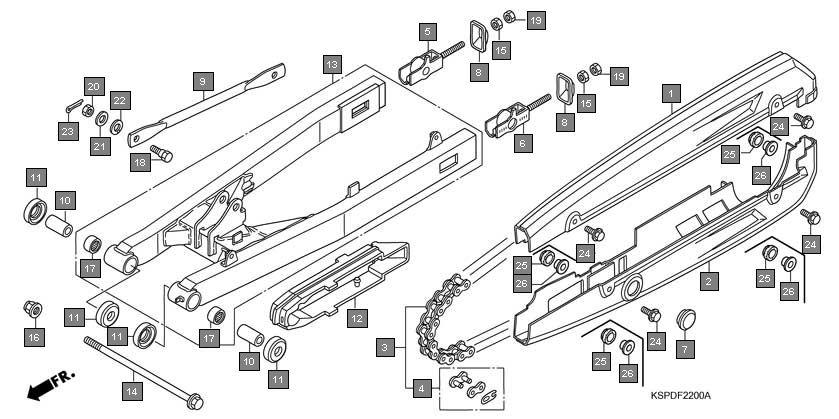

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 40510KSP900ZA | CASE, UPPER HALF DRIVE CHAIN *NH35M* CLOUD SILVER METALLIC | 1 |
| 2 | 40520KSP900ZA | CASE, UNDER HALF DRIVE CHAIN *NH35M* CLOUD SILVER METALLIC | 1 |
| 3 | 40530KSP901 | CHAIN, DRIVE(428H-126)(T.I.D.) | 1 |
| 4 | 40530KSP902 | CHAIN, DRIVE(428H-126)(L.G.B.) | 1 |
| 5 | 40531KSP901 | JOINT, DRIVE CHAIN(T.I.D.) | 1 |
| 6 | 40531KSP902 | JOINT, DRIVE CHAIN(L.G.B.) | 1 |
| 7 | 40543KSP900 | ADJUSTER, R. CHAIN | 1 |
| 8 | 40544KSP900 | ADJUSTER, L. CHAIN | 1 |
| 9 | 40545001000 | CAP, CHAIN CASE PEEP HOLE | 1 |
| 10 | 40546KRY900 | CAP, RR. FORK END | 2 |
| 11 | 43431KSP900 | ARM, RR. BRAKE STOPPER | 1 |
| 12 | 52141KSP900 | COLLAR, SWINGARM PIVOT | 2 |
| 13 | 52144GC4003 | DUST SEAL, 31X40.5X7.1(ARAI) | 4 |
| 14 | 52170KSP900 | SLIDER, CHAIN | 1 |
| 15 | 52200KSP900ZA | SWINGARM SUB ASSY., RR. *NH35M* CLOUD SILVER METALLIC | 1 |
| 16 | 90121KSP900 | BOLT, SWINGARM PIVOT | 1 |
| 17 | 90302KBP900 | NUT, SPECIAL, 6MM | 2 |
| 18 | 90305KCJ951 | NUT, U, 14MM(FUJI SEIMITSU) | 1 |
| 19 | 91071KSP901 | BEARING, NEEDLE, 20X26X20 | 2 |
| 20 | 9281210000 | BOLT A, STOPPER ARM | 1 |
| 21 | 94001060000S | NUT, HEX., 6MM | 2 |
| 22 | 94001080000S | NUT, HEX., 8MM | 1 |
| 23 | 9410108000 | WASHER, PLAIN, 8MM | 1 |
| 24 | 9411110000 | WASHER, SPRING, 10MM | 1 |
| 25 | 9420120150 | PIN, SPLIT, 2.0X15 | 1 |
| 26 | 957010601000 | BOLT, FLANGE, 6X10 | 4 |
