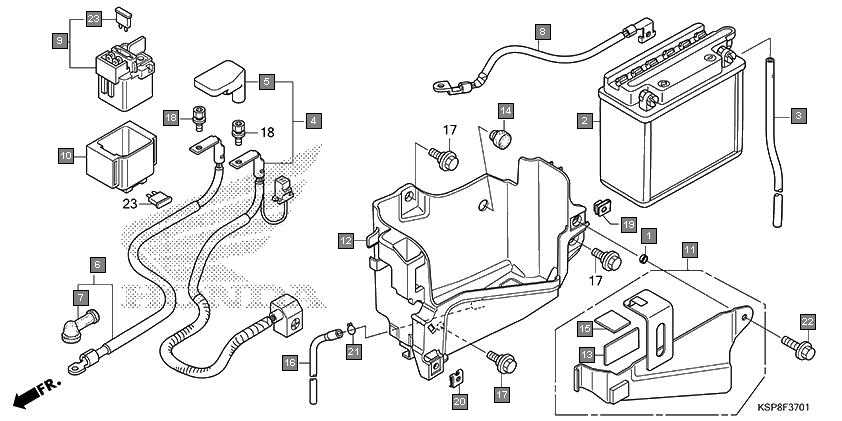

Motorcycles CB Unicorn CBF150MK Frame Battery(cbf150mk)
Ref.No. Part No. Description Oty
1 17223KVX600 COLLAR, AIR CLEANER 1
2 31500KSP921 BATTERY(YB7B-B) 1
3 31502KSP920 TUBE, BATTERY BREATHER 1
4 32401KSPD20 CABLE, STARTER MAGNETIC BATTERY 1
5 32406KSP860 COVER, STARTER MAGNETIC TERMINAL 1
6 32410KSP860 CABLE, STARTER MOTOR 1
7 32411253000 COVER, STARTER MOTOR TERMINAL 1
8 32601KSP920 CABLE, BATTERY EARTH 1
9 35850K38901 SWITCH ASSY., STARTER MAGNETIC 1
10 35856K21900 RUBBER, SHOCK 1
11 50341KSPD20 BAND COMP., BATTERY 1
12 50380KSPD20 BOX, BATTERY 1
13 50383GB6300 RUBBER, BATTERY 1
14 50384KSP920 RUBBER, BATTERY TRAY 1
15 50386130690 CUSHION C, BATTERY 1
16 50388KTE910 TUBE, BATTERY TRAY 1
17 90111162000 BOLT, FLANGE, 6MM 3
18 90111MR5000 BOLT, SOCKET, 5X9 2
19 90311MT3000 NUT, CLIP, 6MM 1
20 90320GC3000 NUT, SPRING, 5MM 1
21 90651MK3780 CLIP, TUBE(B12.5) 1
22 957010601600 BOLT, FLANGE, 6X16 1
23 9820032000 FUSE, BLADE(20A) 2
