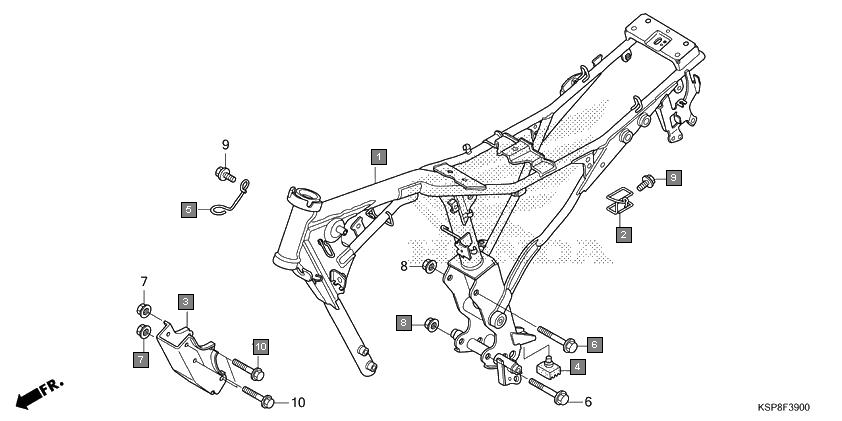

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50100KSPD20 | BODY COMP., FRAME | 1 |
2 | 50296KSP860 | GUIDE, DRAIN HOSE | 1 |
3 | 50351KSP860 | PLATE, FR. ENGINE HANGER | 1 |
4 | 50505KSP900 | RUBBER, STAND STOPPER | 1 |
5 | 50721KSP900 | GUIDE, CLUTCH CABLE | 1 |
6 | 90019399010 | BOLT, FLANGE, 10X110 | 2 |
7 | 9405008000 | NUT, FLANGE, 8MM | 4 |
8 | 9405010000 | NUT, FLANGE, 10MM | 2 |
9 | 957010601207 | BOLT, FLANGE, 6X12 | 2 |
10 | 958010808500 | BOLT, FLANGE, 8X85 | 4 |
