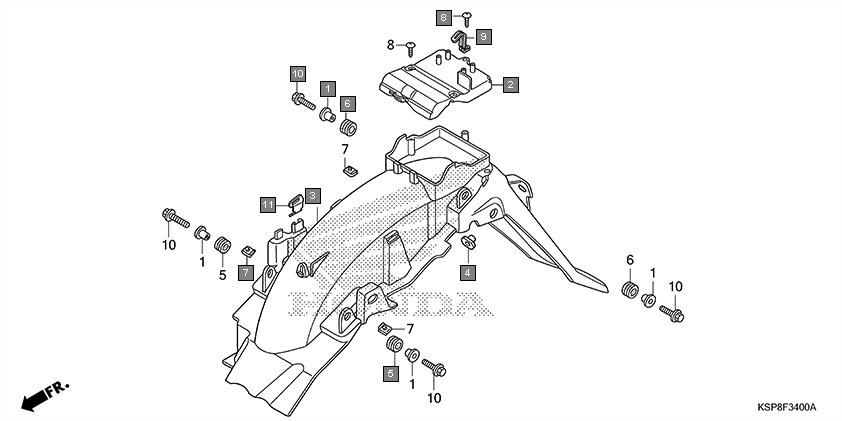

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 4 |
2 | 80102KSP900 | COVER, TOOL BOX | 1 |
3 | 80110KSPB10 | FENDER, RR. | 1 |
4 | 90311KTE910 | NUT, RR. FENDER | 2 |
5 | 83545KCJ690 | RUBBER, SIDE COVER | 2 |
6 | 83545KSP900 | RUBBER, RR. FENDER | 2 |
7 | 90320GC3000 | NUT, SPRING, 5MM | 3 |
8 | 9390325220 | SCREW, TAPPING, 5X12 | 3 |
9 | 9459147000 | CLIP, 4X70 | 1 |
10 | 957010602000 | BOLT, FLANGE, 6X20 | 4 |
11 | 80122KSPD40 | STAY, FUSE | 1 |
