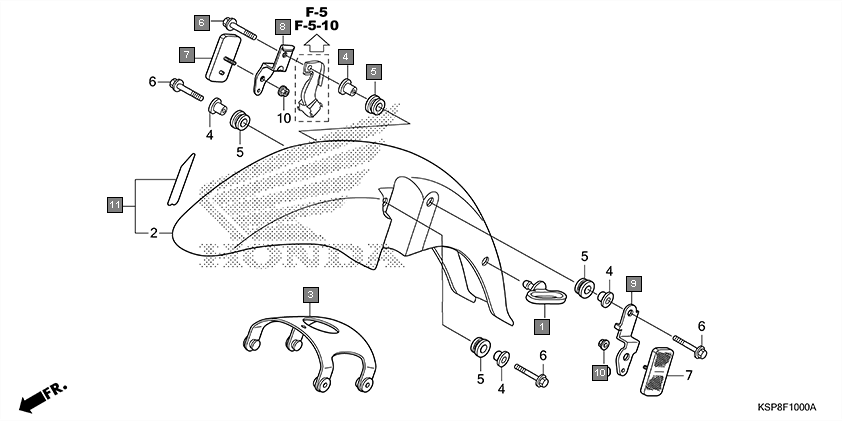

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 45451473000 | GUIDE, FR. FENDER CABLE | 1 |
2 | 61102KSPD00 | STAY, FR. FENDER | 1 |
3 | 61103KRY900 | COLLAR A, FR. FENDER | 4 |
4 | 61105KRY900 | RUBBER, FR. FENDER MOUNTING | 4 |
5 | 960010603200 | BOLT, FLANGE, 6X32 | 4 |
6 | 33740KZK951 | REFLECTOR, FR. SIDE REFLEX | 2 |
7 | 33742KSPD10 | STAY, R. FR. REFLECTOR | 1 |
8 | 33743KSPD10 | STAY, L. FR. REFLECTOR | 1 |
9 | 90301KWN901 | NUT, U, 5MM | 2 |
10 | 61110KSPD20ZD | FENDER SET, FR.(WL) *TYPE2 1* | 1 |
11 | 61110KSPD20ZA | FENDER SET, FR.(WL) *TYPE3* | 1 |
12 | 61110KSPD20ZC | FENDER SET, FR.(WL) *TYPE1* | 1 |
