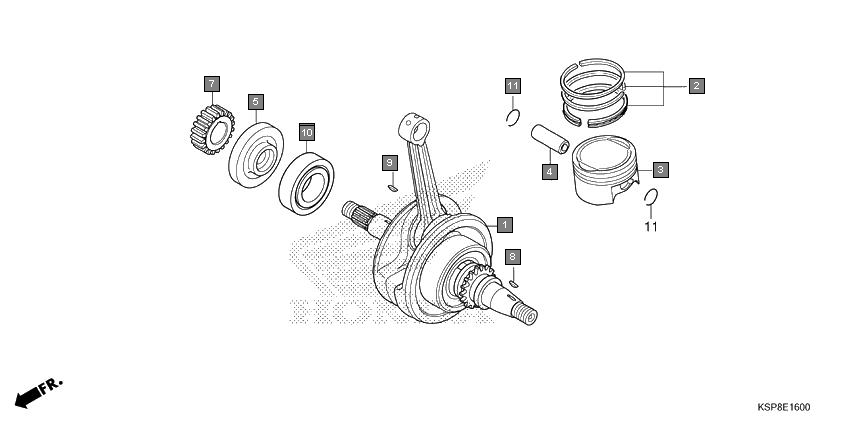

Motorcycles CB Unicorn CBF150MK Engine Crankshaft/piston
Ref.No. Part No. Description Oty
1 13000KSP911 CRANKSHAFT COMP. 1
2 13051KRM305 RING SET, PISTON(1.00)(RIKEN) 1
3 13011KRM305 RING SET, PISTON(STD.)(RIKEN) 1
4 13031KRM305 RING SET, PISTON(0.50)(RIKEN) 1
5 13021KRM305 RING SET, PISTON(0.25)(RIKEN) 1
6 13041KRM305 RING SET, PISTON(0.75)(RIKEN) 1
7 13102KSP305 PISTON(0.25) 1
8 13105KSP305 PISTON(1.00) 1
9 13103KSP305 PISTON(0.50) 1
10 13104KSP305 PISTON(0.75) 1
11 13101KSP910 PISTON 1
12 13111KSP910 PIN, PISTON 1
13 13412KSP910 COLLAR, R. CRANKSHAFT 1
14 23121KRM840 GEAR, PRIMARY DRIVE(20T) 1
15 90741KFB000 KEY, WOODRUFF, 4MM 1
16 90741KGH900 KEY, WOODRUFF, 4MM 1
17 91001KTN900 BEARING, ROLLER, 30X58X17 1
18 91001KSP913 BEARING, ROLLER, 30X58X17(FAG) 1
19 9460114000 CLIP, PISTON PIN, 14MM 2
