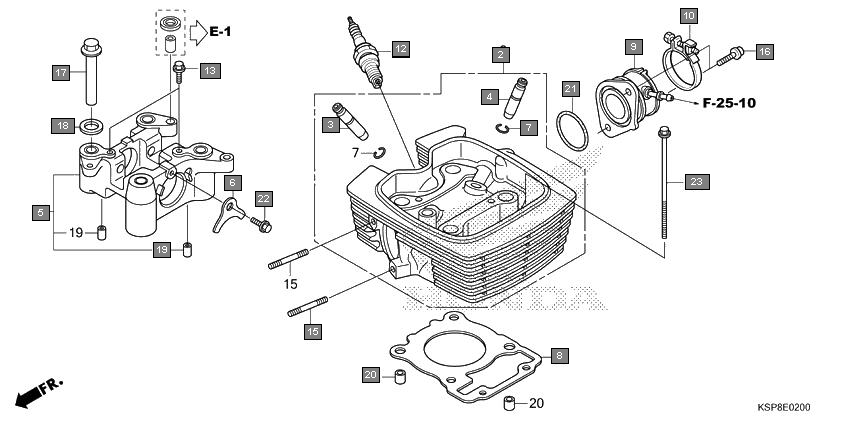

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 12200KSPD00 | HEAD COMP., CYLINDER | 1 |
| 2 | 12204KRM305 | GUIDE, VALVE(O.S.)(EXHAUST SIDE) | 1 |
| 3 | 12205KSP305 | GUIDE, IN. VALVE(O.S.) | 1 |
| 4 | 12210KSP910 | HOLDER COMP., CAMSHAFT | 1 |
| 5 | 12212KRM840 | PLATE, STOPPER | 1 |
| 6 | 12213KSP910 | CLIP, VALVE GUIDE | 2 |
| 7 | 12251KRMB41 | GASKET, CYLINDER HEAD | 1 |
| 8 | 16210KSP910 | INSULATOR COMP., CARBURETOR | 1 |
| 9 | 16217KSP910 | BAND, INSULATOR | 1 |
| 10 | 31926KRM841 | PLUG, SPARK(CPR9EA-9)(NGK) | 1 |
| 11 | 31916KRM841 | PLUG, SPARK(CPR8EA-9)(NGK) | 1 |
| 12 | 90002KRM840 | BOLT, FLANGE, 5X14 | 2 |
| 13 | 90035KRM840 | BOLT, STUD, 8X22 | 2 |
| 14 | 90091KRM840 | BOLT, FLANGE SOCKET, 6X22 | 2 |
| 15 | 90306KRM840 | NUT, CYLINDER HEAD | 4 |
| 16 | 90404KPTA00 | WASHER, PLAIN, 12MM | 4 |
| 17 | 9430306100 | DOWEL PIN, 6X10 | 2 |
| 18 | 90703KRM840 | DOWEL PIN, 10X12 | 2 |
| 19 | 91304KRM840 | O-RING, 33.5X3.0 | 1 |
| 20 | 957010601400 | BOLT, FLANGE, 6X14 | 1 |
| 21 | 958010610500 | BOLT, FLANGE, 6X105 | 2 |
