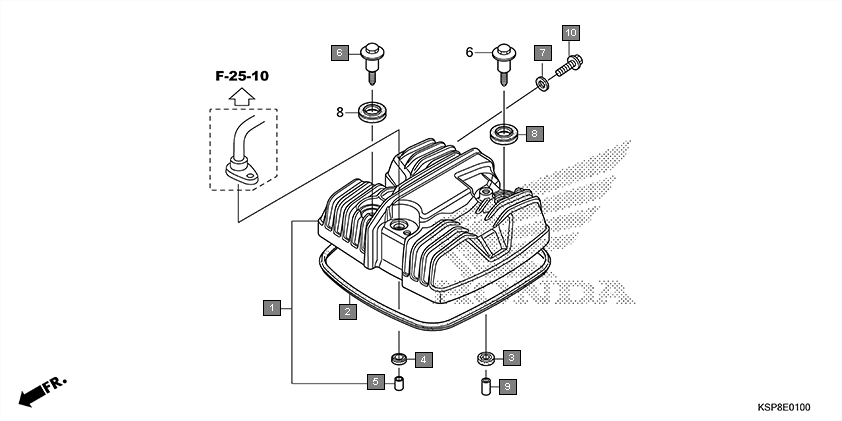

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12310KSPB10 | COVER COMP., CYLINDER HEAD | 1 |
2 | 12391KRM840 | GASKET, HEAD COVER | 1 |
3 | 12396KRM840 | GASKET B, HEAD COVER | 1 |
4 | 12397KSP910 | GASKET C, HEAD COVER | 1 |
5 | 12398KSP910 | COLLAR, 9MM | 1 |
6 | 90003KFG000 | BOLT, L. CRANKCASE COVER | 2 |
7 | 90463KRM840 | WASHER, SEALING, 6.2X12X1.2 | 1 |
8 | 90543MV9670 | RUBBER, MOUNTING | 2 |
9 | 90702KRM840 | DOWEL PIN, 8X14 | 1 |
10 | 960010601200 | BOLT, FLANGE, 6X12 | 1 |
