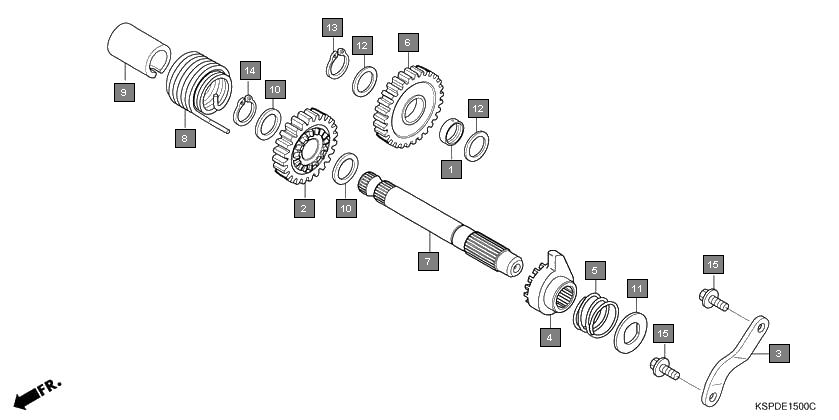

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 23427KSP910 | BUSH, 17X20.5X8.0 | 1 |
2 | 28211KRM840 | PINION, KICK STARTER(24T) | 1 |
3 | 28215KRM840 | PLATE, KICK STOPPER | 1 |
4 | 28221KRM840 | RATCHET, STARTER | 1 |
5 | 28223KRM840 | SPRING, RATCHET | 1 |
6 | 28231KRM840 | GEAR, KICK STARTER IDLE(29T) | 1 |
7 | 28251KSP911 | SPINDLE, KICK STARTER | 1 |
8 | 28261KRM840 | SPRING, KICK RETURN | 1 |
9 | 28282KRM840 | COLLAR, KICK SPRING | 1 |
10 | 90451KRM840 | WASHER, THRUST, 16MM | 2 |
11 | 90455KSP910 | WASHER, SPLINE, 14MM | 1 |
12 | 90458KRM840 | WASHER, THRUST, 17MM | 2 |
13 | 90602KRM840 | CIRCLIP, EXTERNAL, 17MM | 1 |
14 | 9451016000 | CIRCLIP, EXTERNAL, 16MM | 1 |
15 | 957010601600 | BOLT, FLANGE, 6X16 | 2 |
