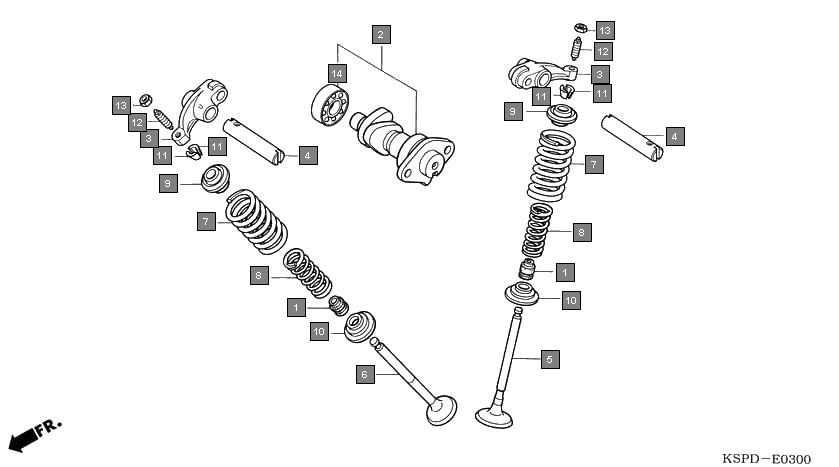

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209KPL901 | SEAL, VALVE STEM | 2 |
2 | 14100KSP911 | CAMSHAFT COMP. | 1 |
3 | 14430KSP910 | ARM COMP., VALVE ROCKER | 2 |
4 | 14451KRM840 | SHAFT, ROCKER ARM | 2 |
5 | 14711KSP910 | VALVE, IN. | 1 |
6 | 14721KSP910 | VALVE, EX. | 1 |
7 | 14751KSP910 | SPRING, VALVE OUTER | 2 |
8 | 14761KSP910 | SPRING, VALVE INNER | 2 |
9 | 14771KSP910 | RETAINER, VALVE SPRING | 2 |
10 | 14777KSP910 | SEAT, VALVE SPRING | 2 |
11 | 14781MA6000 | COTTER, VALVE | 4 |
12 | 90012KK3830 | SCREW, TAPPET ADJUSTING | 2 |
13 | 90206KSP910 | NUT, TAPPET ADJUSTING | 2 |
14 | 961006001300 | BEARING, RADIAL BALL, 6001 | 1 |
