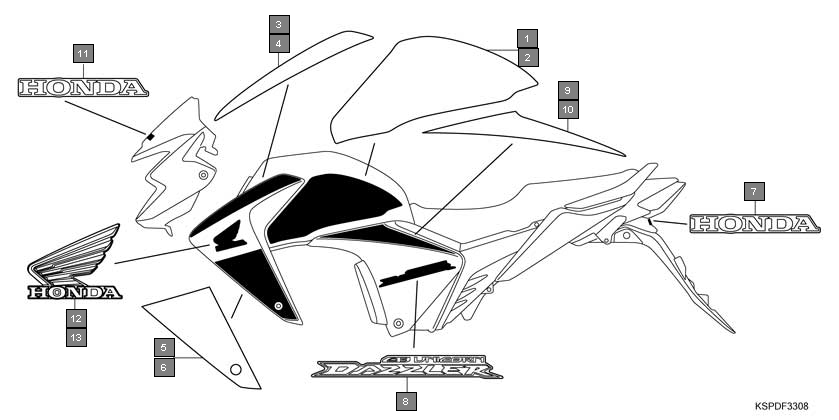

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 86171KSPB60ZA | STRIPE, R. FUEL TANK *TYPE2* | 1 |
2 | 86171KSPB60ZB | STRIPE, R. FUEL TANK *TYPE3* | 1 |
3 | 86172KSPB60ZA | STRIPE, L. FUEL TANK *TYPE2* | 1 |
4 | 86172KSPB60ZB | STRIPE, L. FUEL TANK *TYPE1* | 1 |
5 | 86501KSPB60ZA | STRIPE A, R. SHROUD *TYPE2* | 1 |
6 | 86501KSPB60ZB | STRIPE A, R. SHROUD *TYPE1* | 1 |
7 | 86502KSPB60ZA | STRIPE A, L. SHROUD *TYPE2* | 1 |
8 | 86502KSPB60ZB | STRIPE A, L. SHROUD *TYPE1* | 1 |
9 | 86503KSPB60ZA | STRIPE B, R. SHROUD *TYPE2* | 1 |
10 | 86503KSPB60ZB | STRIPE B, R. SHROUD *TYPE1* | 1 |
11 | 86504KSPB60ZA | STRIPE B, L. SHROUD *TYPE2* | 1 |
12 | 86504KSPB60ZB | STRIPE B, L. SHROUD *TYPE1* | 1 |
13 | 86801KSPB00ZA | MARK, HONDA(70MM) *TYPE1* | 1 |
14 | 86831KSPB00ZA | MARK A, SIDE COVER *TYPE1* | 2 |
15 | 86831KSPB00ZC | MARK A, SIDE COVER *TYPE3* | 2 |
16 | 86831KSPB00ZD | MARK A, SIDE COVER *TYPE4* | 2 |
17 | 86831KSPB60ZA | MARK A, SIDE COVER *TYPE2* | 2 |
18 | 86831KSPB60ZB | MARK A, SIDE COVER *TYPE1* | 2 |
19 | 86832KSPB60ZA | STRIPE A, R. SIDE COVER *TYPE2* | 1 |
20 | 86832KSPB60ZB | STRIPE A, R. SIDE COVER *TYPE1* | 1 |
21 | 86833KSPB60ZA | STRIPE A, L. SIDE COVER *TYPE2* | 1 |
22 | 86833KSPB60ZB | STRIPE A, L. SIDE COVER *TYPE1* | 1 |
23 | 87150KSPB00ZA | MARK, HONDA(70MM) *TYPE1* | 1 |
24 | 87521KSPB00 | EMBLEM, R. SHROUD | 1 |
25 | 87522KSPB00 | EMBLEM, L. SHROUD | 1 |
