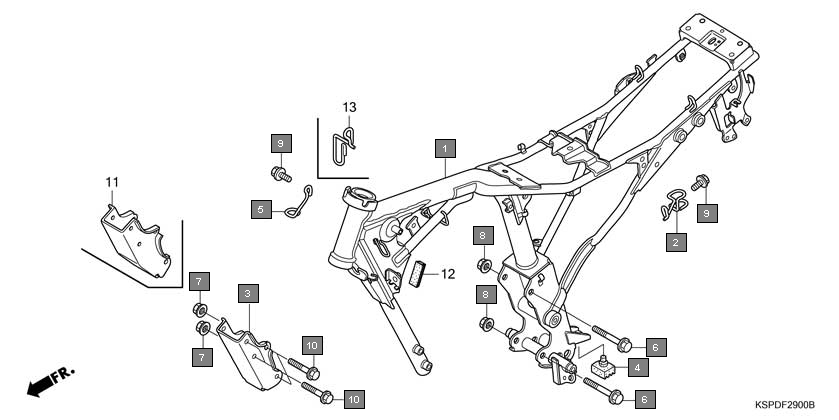

Motorcycles CB Unicorn Dazzler CBF150MC Frame Frame body
Ref.No. Part No. Description Oty
1 50100KSPB50 BODY COMP., FRAME 1
2 50296KSP860 GUIDE, DRAIN HOSE 1
3 50351KSPB00 PLATE, FR. ENGINE HANGER 1
4 50505KSP900 RUBBER, STAND STOPPER 1
5 90019399010 BOLT, FLANGE, 10X110 2
6 9405008000 NUT, FLANGE, 8MM 4
7 9405010000 NUT, FLANGE, 10MM 2
8 957010601207 BOLT, FLANGE, 6X12 2
9 957020601207 BOLT, FLANGE, 6X12 2
10 958010808500 BOLT, FLANGE, 8X85 4
11 958020808500 BOLT, FLANGE, 8X85 4
12 50199KSPB00 RUBBER, STIFFENER 1
13 50722KSPB00 GUIDE, MAIN HARNESS 1
