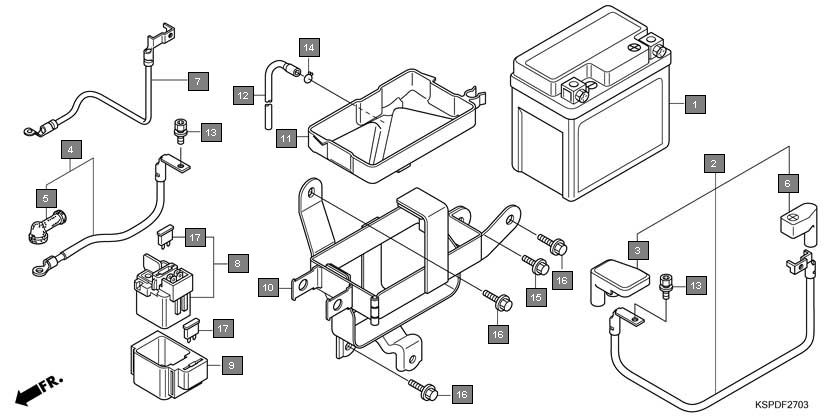

Motorcycles CB Unicorn Dazzler CBF150MC Frame Battery(4)
Ref.No. Part No. Description Oty
1 31500KRP801 BATTERY(ETZ5-BS)(EXIDE) 1
2 31500KRPN41 BATTERY(ETZ5)(EXIDE) 1
3 32401KSPB00 CABLE, STARTER MAGNETIC BATTERY 1
4 32406KSP860 COVER, STARTER MAGNETIC TERMINAL 1
5 32410KSPB00 CABLE, STARTER MOTOR 1
6 32411253000 COVER, STARTER MOTOR TERMINAL 1
7 32417KSPB00 COVER, BATTERY TERMINAL 1
8 32601KSPB00 CABLE, BATTERY EARTH 1
9 35850KEB620 SWITCH ASSY., STARTER MAGNETIC 1
10 35856KVN900 RUBBER, SHOCK 1
11 50384KSPB00 CASE, BATTERY 1
12 50385KSPB00 TRAY, BATTERY 1
13 50388KTE910 TUBE, BATTERY TRAY 1
14 90111MR5000 BOLT, SOCKET, 5X9 2
15 90651MK3780 CLIP, TUBE(B12.5) 1
16 92301060120A BOLT, RECESSED, 6X12 1
17 957010601200 BOLT, FLANGE, 6X12 3
18 957020601200 BOLT, FLANGE, 6X12 3
19 9820032000 FUSE, BLADE(20A) 2
