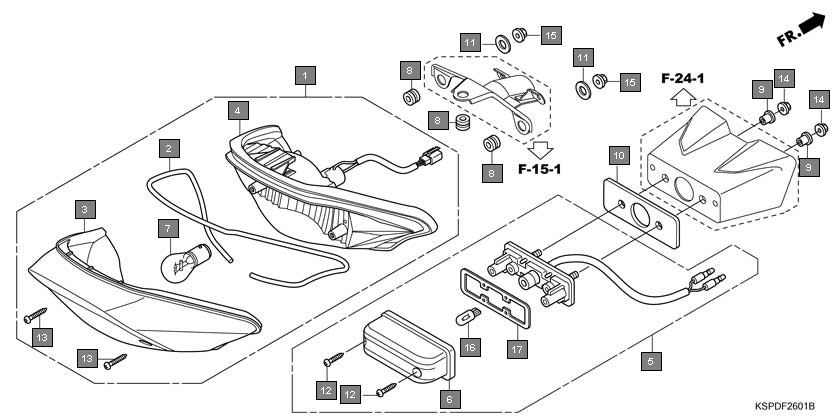

Motorcycles CB Unicorn Dazzler CBF150MC Frame Taillight(cbf150mb/mc)
Ref.No. Part No. Description Oty
1 33700KSPB01 TAILLIGHT UNIT 1
2 33701KSPB01 PACKING 1
3 33702KSPB01 LENS, TAILLIGHT 1
4 33703KSPB01 BASE COMP., TAILLIGHT 1
5 33720KSPB01 LIGHT ASSY., LICENSE(12V 5W) 1
6 33723KSPB01 COVER COMP. 1
7 34907KVN901 BULB, TAIL & STOP LIGHT (12V 21/5W) 1
8 77209KAG900 RUBBER, SEAT STAY MOUNTING 3
9 80202KVE900 COLLAR, LICENSE LIGHT 2
10 80203KVE900 RUBBER, LICENSE LIGHT 1
11 90563355000 WASHER, WHEEL, 6MM 2
12 9390124480 SCREW, TAPPING, 4X16 2
13 9390124580 SCREW, TAPPING, 4X20 2
14 9405005000 NUT, FLANGE, 5MM 2
15 9405006000 NUT, FLANGE, 6MM 2
16 33301KSPB00 BULB, WEDGE BASE(T10 12V 5W)(PHILIPS) 1
17 33729KSPB01 PACKING, LENS 1
