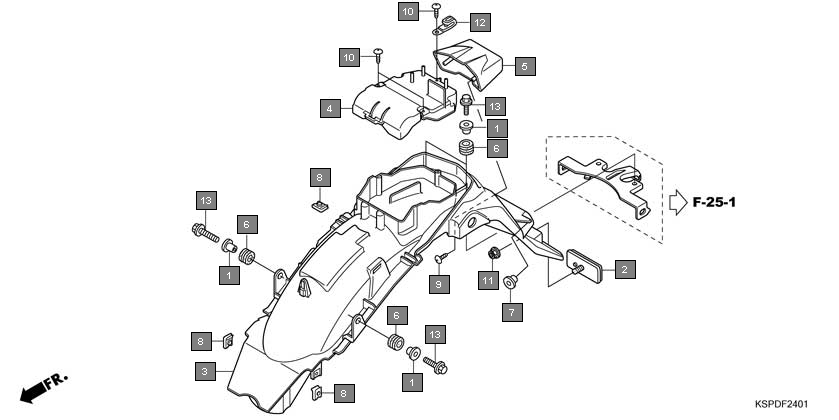

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 4 |
2 | 33741KPL902 | REFLECTOR, REFLEX | 1 |
3 | 80100KSPB00ZA | FENDER SET, RR.(WL) *TYPE1* | 1 |
4 | 80102KSPB00 | COVER, TOOL BOX | 1 |
5 | 80103KSPB00 | BASE, LICENSE LIGHT | 1 |
6 | 83545KCJ690 | RUBBER, SIDE COVER | 4 |
7 | 90311KTE910 | NUT, RR. FENDER | 2 |
8 | 90320GC3000 | NUT, SPRING, 5MM | 3 |
9 | 9390324480 | SCREW, TAPPING, 4X16 | 2 |
10 | 9390325220 | SCREW, TAPPING, 5X12 | 3 |
11 | 9405005000 | NUT, FLANGE, 5MM | 1 |
12 | 9459147000 | CLIP, 4X70 | 1 |
13 | 957010602000 | BOLT, FLANGE, 6X20 | 4 |
14 | 957020602000 | BOLT, FLANGE, 6X20 | 4 |
