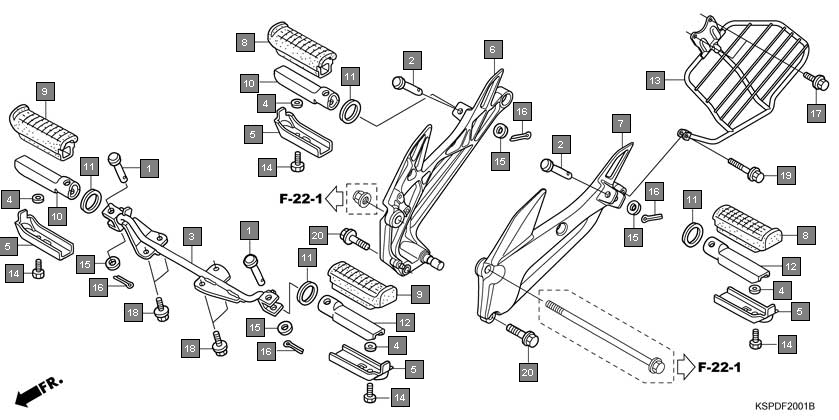

Motorcycles CB Unicorn Dazzler CBF150MC Frame Step(cbf150mb/mc)
Ref.No. Part No. Description Oty
1 50602KSP900 PIN, MAIN STEP BAR JOINT 2
2 50603KSP900 PIN, STEP BAR JOINT 2
3 50610KSPB00 BAR COMP., STEP 1
4 50618KE8000 COLLAR, 6.5X11X3 4
5 50619KSP900 PLATE, STEP LOWER 4
6 50630KSPB00ZA HOLDER, R. STEP *NH303M* MAT AXIS GRAY METALLIC 1
7 50640KSPB00ZA HOLDER, L. STEP *NH303M* MAT AXIS GRAY METALLIC 1
8 50661KFN850 RUBBER, MAIN STEP 2
9 50661KFN880 RUBBER, MAIN STEP 2
10 50701KSP900 BAR, R. MAIN STEP 2
11 50715KSP910 PLATE, PILLION STEP SIDE 4
12 50801KSP900 BAR, L. MAIN STEP 2
13 51103KSPB00 GUARD, SARI 1
14 92101060120G BOLT, HEX., 6X12 4
15 9410208000 WASHER, PLAIN, 8MM 4
16 9420120150 PIN, SPLIT, 2.0X15 4
17 957010801600 BOLT, FLANGE, 8X16 2
18 957020801600 BOLT, FLANGE, 8X16 2
19 957010802000 BOLT, FLANGE, 8X20 4
20 957020802000 BOLT, FLANGE, 8X20 4
21 957010803500 BOLT, FLANGE, 8X35 1
22 957020803500 BOLT, FLANGE, 8X35 1
23 957011002500 BOLT, FLANGE, 10X25 2
24 957021002500 BOLT, FLANGE, 10X25 2
