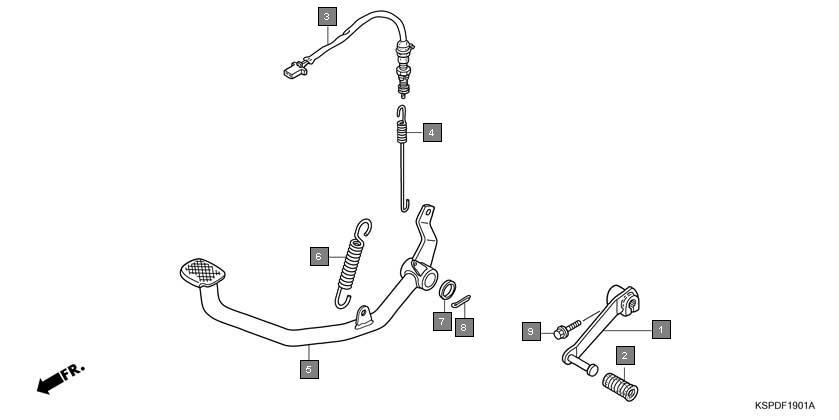

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 24701KSPA70 | PEDAL, GEAR CHANGE | 1 |
2 | 24781KSP860 | RUBBER, CHANGE PEDAL | 1 |
3 | 35350KSPB01 | SWITCH ASSY., RR. STOP | 1 |
4 | 35357KSP900 | SPRING, STOP SWITCH | 1 |
5 | 46500KSPB00 | PEDAL COMP., BRAKE | 1 |
6 | 46514KN5670 | SPRING, BRAKE PEDAL | 1 |
7 | 90521028000 | WASHER, 17X22 | 1 |
8 | 9420130300 | PIN, SPLIT, 3.0X30 | 1 |
9 | 960010602000 | BOLT, FLANGE, 6X20 | 1 |
