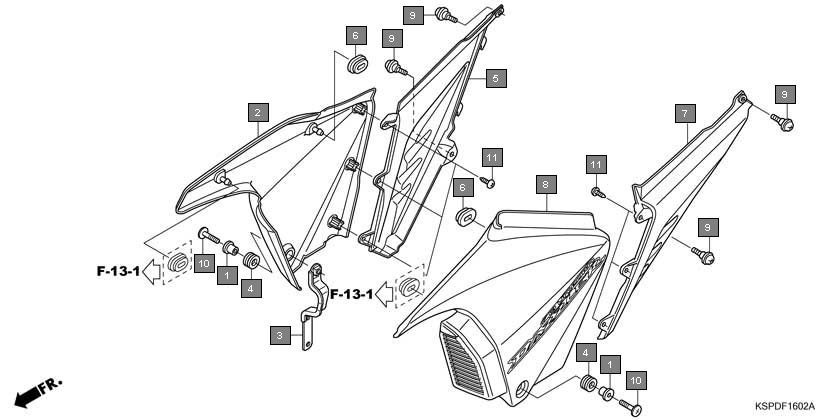

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 2 |
2 | 83500KSPB00ZA | COVER SET A, R. SIDE(WL) *TYPE1* | 1 |
3 | 83500KSPB00ZC | COVER SET A, R. SIDE(WL) *TYPE3* | 1 |
4 | 83500KSPB00ZD | COVER SET A, R. SIDE(WL) *TYPE4* | 1 |
5 | 83500KSPB60ZA | COVER SET, R. SIDE(WL) *TYPE2* | 1 |
6 | 83500KSPB60ZB | COVER SET, R. SIDE(WL) *TYPE1* | 1 |
7 | 83501KSPB00 | STAY, SIDE COVER | 1 |
8 | 83545KCJ690 | RUBBER, SIDE COVER | 2 |
9 | 83550KSPB00 | COVER B, R. SIDE | 1 |
10 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
11 | 83555KSPB00 | COVER B, L. SIDE | 1 |
12 | 83600KSPB00ZA | COVER SET A, L. SIDE(WL) *TYPE1* | 1 |
13 | 83600KSPB00ZC | COVER SET A, L. SIDE(WL) *TYPE3* | 1 |
14 | 83600KSPB00ZD | COVER SET A, L. SIDE(WL) *TYPE4* | 1 |
15 | 83600KSPB60ZA | COVER SET, L. SIDE(WL) *TYPE2* | 1 |
16 | 83600KSPB60ZB | COVER SET, L. SIDE(WL) *TYPE1* | 1 |
17 | 90101GE0000 | SCREW, HINGE PATCH | 4 |
18 | 90105KVN900 | BOLT, SPECIAL, 6X22 | 2 |
19 | 9390324380 | SCREW, TAPPING, 4X12 | 6 |
