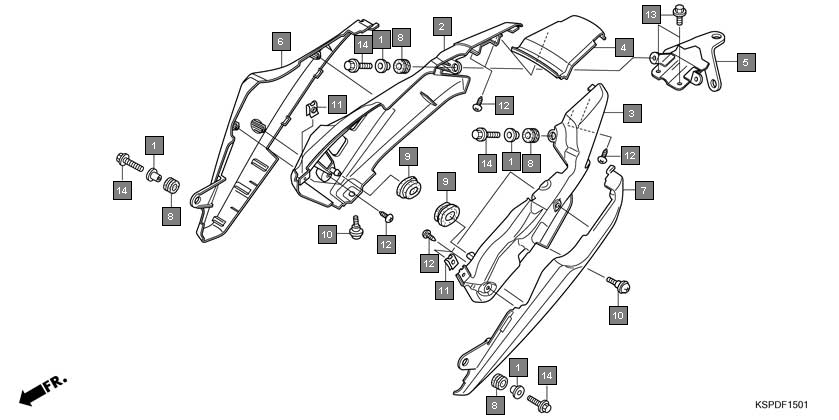

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 19052KV0000 | COLLAR, RADIATOR MOUNTING | 4 |
2 | 77210KSPB00 | COWL, R. RR. | 1 |
3 | 77220KSPB00 | COWL, L. RR. | 1 |
4 | 77230KSPB00 | COWL, RR. CENTER | 1 |
5 | 77235KSPB00 | STAY, TAILLIGHT | 1 |
6 | 77240KSPB00ZA | GARNISH, R. RR. *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
7 | 77240KSPB00ZC | GARNISH, R. RR. *R320P* PEARL SIENA RED | 1 |
8 | 77240KSPB00ZD | GARNISH, R. RR. *Y207M* ARMOUR GOLD METALLIC | 1 |
9 | 77240KSPB00ZF | GARNISH, R. RR. *NH1* BLACK | 1 |
10 | 77240KSPB00ZG | GARNISH, R. RR. *NHA66P* PEARL SUNBEAM WHITE | 1 |
11 | 77250KSPB00ZA | GARNISH, L. RR. *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
12 | 77250KSPB00ZC | GARNISH, L. RR. *R320P* PEARL SIENA RED | 1 |
13 | 77250KSPB00ZD | GARNISH, L. RR. *Y207M* ARMOUR GOLD METALLIC | 1 |
14 | 77250KSPB00ZE | GARNISH, R. RR. *NH1* BLACK | 1 |
15 | 77250KSPB00ZF | GARNISH, R. RR. *NHA66P* PEARL SUNBEAM WHITE | 1 |
16 | 83545KCJ690 | RUBBER, SIDE COVER | 4 |
17 | 83551300000 | GROMMET, AIR CLEANER CASE | 2 |
18 | 90101GE0000 | SCREW, HINGE PATCH | 2 |
19 | 90320GC3000 | NUT, SPRING, 5MM | 2 |
20 | 9390324380 | SCREW, TAPPING, 4X12 | 10 |
21 | 957010601208 | BOLT, FLANGE, 6X12 | 2 |
22 | 957020601208 | BOLT, FLANGE, 6X12 | 2 |
23 | 957010602000 | BOLT, FLANGE, 6X20 | 4 |
24 | 957020602000 | BOLT, FLANGE, 6X20 | 4 |
