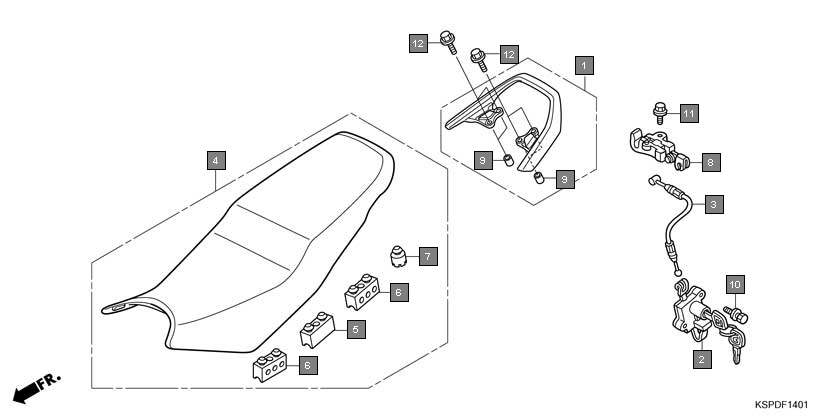

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 50400KSPB00ZA | GRIP, RR. *NHA84P* PEARL NIGHTSTAR BLACK | 1 |
2 | 50400KSPB00ZC | GRIP, RR. *R320P* PEARL SIENA RED | 1 |
3 | 50400KSPB00ZD | GRIP, RR. *Y207M* ARMOUR GOLD METALLIC | 1 |
4 | 50400KSPB00ZF | GRIP, RR. *NH1* BLACK | 1 |
5 | 50400KSPB00ZG | GRIP, RR. *NHA66P* PEARL SUNBEAM WHITE | 1 |
6 | 77110KSP911 | LOCK ASSY., SEAT | 1 |
7 | 77156KSPB00 | CABLE, SEAT LOCK | 1 |
8 | 77200KSPB01ZA | SEAT COMP., DOUBLE *TYPE1* | 1 |
9 | 77204KCC900 | RUBBER A, SEAT SETTING | 2 |
10 | 77204KYA600 | RUBBER A, SEAT SETTING | 4 |
11 | 77206KFN850 | RUBBER, SEAT CUSHION | 2 |
12 | 77220KY6010 | HOOK, SEAT CATCH | 1 |
13 | 81202KWF900 | COLLAR, CARRIER | 4 |
14 | 90107GZ4670 | BOLT, BREAK OFF | 2 |
15 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
16 | 957020601200 | BOLT, FLANGE, 6X12 | 1 |
17 | 957010802000 | BOLT, FLANGE, 8X20 | 4 |
18 | 957020802000 | BOLT, FLANGE, 8X20 | 4 |
