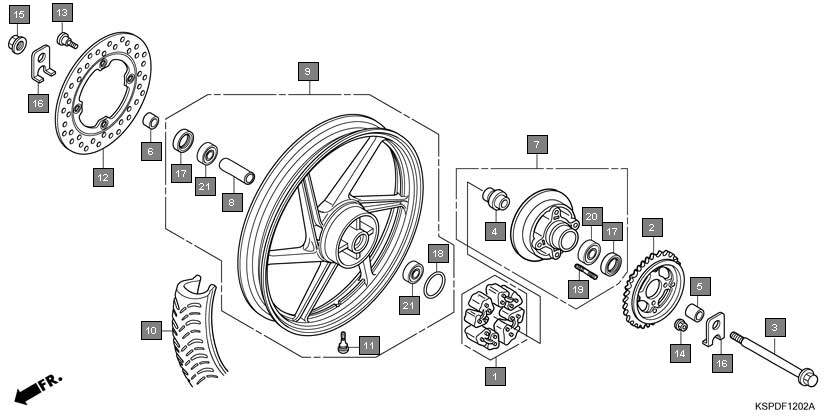

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KSP900 | DAMPER SET, WHEEL | 1 |
| 2 | 41200KSPB00 | SPROCKET COMP., FINAL DRIVEN(42T) | 1 |
| 3 | 42301KSPB00 | AXLE, RR. WHEEL | 1 |
| 4 | 42303KSPB00 | SLEEVE, RR. WHEEL | 1 |
| 5 | 42304KSPB00 | COLLAR, RR. WHEEL SIDE | 1 |
| 6 | 42313KSPB00 | COLLAR, RR. BRAKE SIDE | 1 |
| 7 | 42615KSPB00ZA | FLANGE SUB ASSY., FINAL DRIVEN *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 8 | 42620KSPB00 | COLLAR, RR. AXLE DISTANCE | 1 |
| 9 | 42650KSPB01ZA | WHEEL SUB ASSY., RR. *NH303M* MAT AXIS GRAY METALLIC | 1 |
| 10 | 42711KSPB01 | TIRE, RR.(MRF)(110/80-17 57P) | 1 |
| 11 | 42753KWF901 | VALVE, RIM(TRITON) | 1 |
| 12 | 43251KSPB01ZA | DISK, RR. BRAKE(YUTAKA) *TYPEA* | 1 |
| 13 | 90105KSP870 | BOLT, DISK, 8X24 | 4 |
| 14 | 90304KST942 | NUT, FLANGE, 10MM (LEO FASTENERS) | 4 |
| 15 | 90304KTE911 | NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) | 4 |
| 16 | 90305KVN901 | NUT, FLANGE, 14MM (SIMMONDS MARSHALL) | 1 |
| 17 | 90305KVN902 | NUT, FLANGE, 14MM(LEO FASTENERS) | 1 |
| 18 | 90560KSPB00 | WASHER, RR. AXLE | 2 |
| 19 | 91257230003 | OIL SEAL, 28X42X7(ARAI) | 2 |
| 20 | 91257230005 | OIL SEAL, 28X42X7(NOK) | 2 |
| 21 | 91352KSP900 | O-RING, 51X2 | 1 |
| 22 | 92915100250E | BOLT, STUD, 10X25 | 4 |
| 23 | 961506004010 | BEARING, RADIAL BALL, 6004UU | 1 |
| 24 | 961506302010 | BEARING, RADIAL BALL, 6302UU | 2 |
