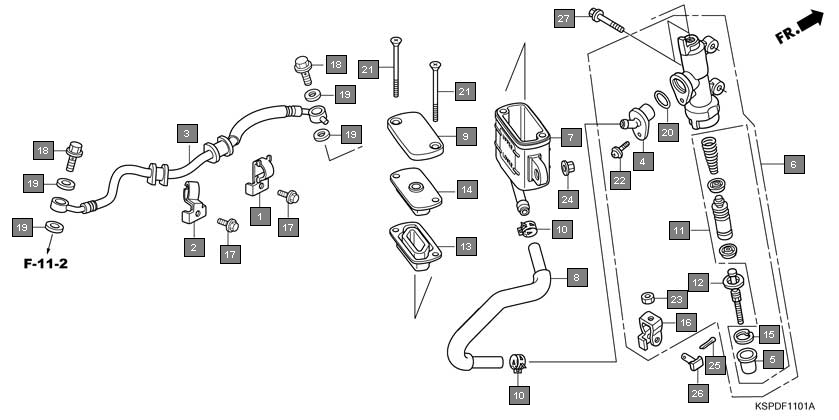

Motorcycles CB Unicorn Dazzler CBF150MC Frame Rr. brake master cylinder
Ref.No. Part No. Description Oty
1 43156KSPB00 CLAMPER, RR. BRAKE HOSE 1
2 43157KSPB00 CLAMPER B, RR. BRAKE HOSE 1
3 43310KSPB01 HOSE COMP., RR. BRAKE 1
4 43503MR8006 CONNECTOR, MASTER CYLINDER 1
5 43504MB2006 BOOT COMP. 1
6 43510KSPB01 CYLINDER SUB ASSY., RR. MASTER 1
7 43511KW7881 CUP COMP., OIL(NISSIN) 1
8 43512KSPB01 HOSE COMP., RR. MASTER CYLINDER 1
9 43513KBP881 CAP, MASTER CYLINDER 1
10 43514KS6701 CLAMP, MASTER CYLINDER OIL HOSE 2
11 43520MJ6315 PISTON SET, MASTER CYLINDER (NISSIN) 1
12 43530KS7831 ROD COMP., PUSH 1
13 45520GW0911 DIAPHRAGM 1
14 45521GW0911 PLATE, DIAPHRAGM 1
15 46182MELD21 CIRCLIP 1
16 46504KV6702 JOINT, BRAKE ROD 1
17 90102KGH900 BOLT, FLANGE, 6X10 2
18 90145GAZ981 BOLT, OIL, 10X22 2
19 90545300000 WASHER, OIL BOLT 4
20 91212422006 O-RING, 14.8X2.4 1
21 93600040451G SCREW, FLAT, 4X45 2
22 938930401217 SCREW-WASHER, 4X12 1
23 94002080000S NUT, HEX., 8MM 1
24 9405006080 NUT, FLANGE, 6MM 1
25 9420120150 PIN, SPLIT, 2.0X15 1
26 9501554000 PIN D, JOINT 1
27 957010602208 BOLT, FLANGE, 6X22 2
28 957020602208 BOLT, FLANGE, 6X22 2
