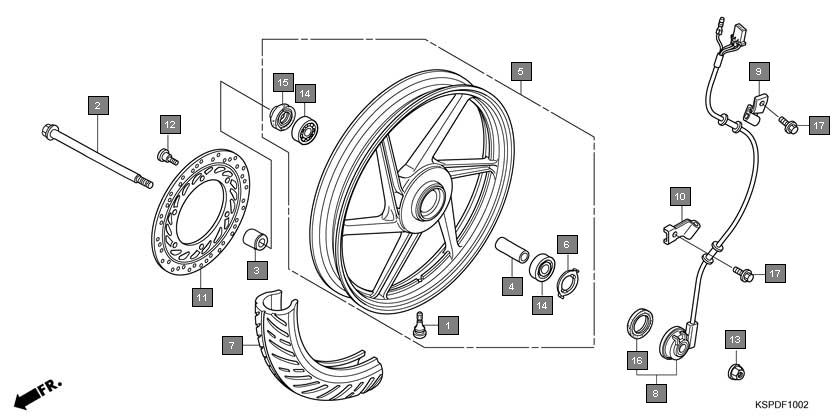

Motorcycles CB Unicorn Dazzler CBF150MC Frame Front wheel(cast)(2)
Ref.No. Part No. Description Oty
1 42753KWF901 VALVE, RIM(TRITON) 1
2 44301KSP900 AXLE, FR. WHEEL 1
3 44311KSP900 COLLAR, FR. WHEEL SIDE 1
4 44620KSP900 COLLAR, FR. AXLE DISTANCE 1
5 44650KSPB01ZA WHEEL SUB ASSY., FR. 1
6 44680KSPB00 RETAINER, GEAR BOX 1
7 44711KSPB01 TIRE, FR.(MRF)(80/100-17 46P) 1
8 44800KSPB01 SENSOR ASSY., SPEED 1
9 44817KSPB00 CLAMPER A, SPEEDOMETER CORD 1
10 44818KSPB00 CLAMPER B, SPEEDOMETER CORD 1
11 45251KSP861 DISK, FR. BRAKE(YUTAKA) 1
12 90105KSP870 BOLT, DISK, 8X24 6
13 90306KST942 NUT, FLANGE, 12MM (LEO FASTENERS) 1
14 90306KTE911 NUT, FLANGE SPECIAL, 12MM (SIMMONDS MARSHALL) 1
15 91052KWF901 BEARING, RADIAL BALL, 6301U (NSK) 2
16 961506301010 BEARING, RADIAL BALL, 6301UU 2
17 91251KPH901 DUST SEAL, 21X37X7(ARAI) 1
18 91258KWC901 DUST SEAL, 40X50X5 1
19 960010601200 BOLT, FLANGE, 6X12 2
