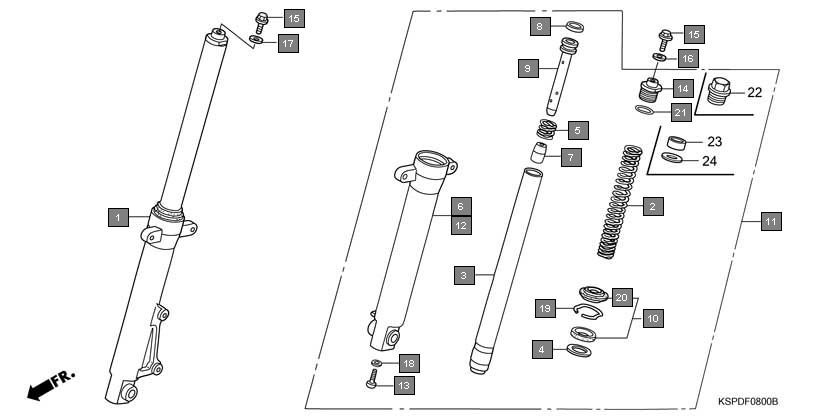

Motorcycles CB Unicorn Dazzler CBF150MC Frame Front fork
Ref.No. Part No. Description Oty
1 51400KSPB01 FORK ASSY., R. FR. 1
2 51401KSPB01 SPRING, FR. FORK 2
3 51410KSPB01 PIPE COMP., FR. FORK 2
4 51412KFN851 RING, BACK UP 2
5 51412KSP901 SPRING, REBOUND 2
6 51420KSPB01 CASE COMP., R. FR. BOTTOM 1
7 51432KFN851 PIECE, OIL LOCK 2
8 51437KVN901 RING, PISTON 2
9 51440KSP901 PIPE, SEAT 2
10 51490KRM852 SEAL SET, FR. FORK 2
11 51500KSPB01 FORK ASSY., L. FR. 1
12 51520KSPB01 CASE COMP., L. FR. BOTTOM 1
13 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
14 90544KFN851 WASHER, SPECIAL, 8MM(SHOWA) 2
15 90601KFN851 RING, OIL SEAL STOPPER 2
16 91254GAA003 DUST SEAL 2
17 91356KAG901 O-RING(SHOWA) 2
18 90123KSP871 BOLT A, FR. FORK 2
