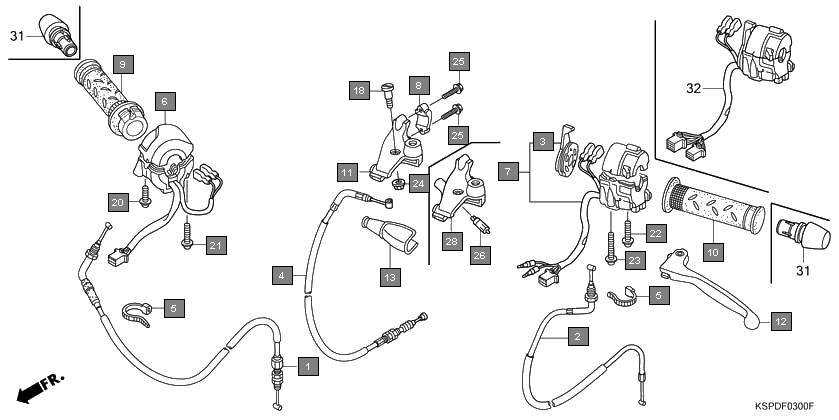

Motorcycles CB Unicorn Dazzler CBF150MC Frame Handle lever/switch/cable
Ref.No. Part No. Description Oty
1 17910KSPB01 CABLE COMP., THROTTLE 1
2 17950KSP900 CABLE COMP., CHOKE 1
3 22870KSPB00 CABLE COMP., CLUTCH 1
4 32161KSP920 BAND B1, WIRE 2
5 35150KSPB01 SWITCH ASSY., LIGHTING & STARTER 1
6 45517166006 HOLDER, MASTER CYLINDER 1
7 53140KSPA70 GRIP COMP., THROTTLE 1
8 53166KSPA70 GRIP, L. HANDLE 1
9 53178KSP900 LEVER COMP., L. HANDLE 1
10 53182KSP900 BOOT, L. HANDLE COVER 1
11 90113KSP901 BOLT, L. HANDLE LEVER PIVOT 1
12 938920502007 SCREW-WASHER, 5X20 1
13 938920502507 SCREW-WASHER, 5X25 1
14 938920503507 SCREW-WASHER, 5X35 1
15 938920504507 SCREW-WASHER, 5X45 1
16 9405006000 NUT, FLANGE, 6MM 1
17 960010602207 BOLT, FLANGE, 6X22 2
18 35330KEJ900 SWITCH COMP., FR. LEVER 1
19 53172KRC900 BRACKET, HANDLE LEVER 1
20 53105KRC900 END, STEERING HANDLE 2
21 35200KSPB01 SWITCH ASSY., WINKER 1
