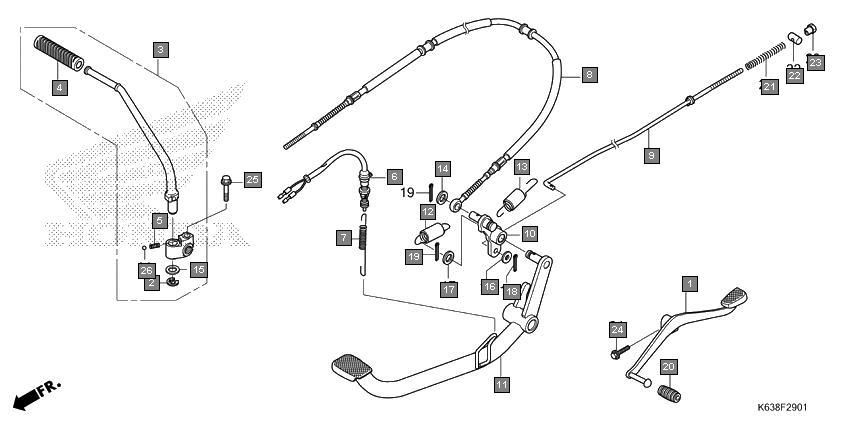

Motorcycles CD 110 Dream CB110CMDK Frame Pedal/kick starter arm(2)
Ref.No. Part No. Description Oty
1 24701K14900 PEDAL, GEAR CHANGE 1
2 28293333000 CLIP, KICK STARTER ARM 1
3 28300K63D30 ARM ASSY., KICK STARTER 1
4 28311KWS900 RUBBER, KICK STARTER 1
5 28333KK0000 SPRING, KICK STARTER 1
6 35350K63D31 SWITCH ASSY., RR. STOP 1
7 35357K14900 SPRING, STOP SWITCH 1
8 43450K55971 CABLE COMP., BRAKE(CBS) 1
9 43451K55970 ROD COMP., RR. BRAKE 1
10 43580K55970 EQUALIZER COMP. 1
11 46500K55970 PEDAL COMP., BRAKE 1
12 46514KTE670 SPRING SET, BRAKE PEDAL 1
13 46613KTEDB0 SPRING SET, DELAY 1
14 90502KRY930 WASHER, BRAKE ROD 1
15 90505KRM860 WASHER, 15.5X22 1
16 9410105800 WASHER, PLAIN, 5MM 1
17 9410210000 WASHER, PLAIN, 10MM 1
18 9420120120 PIN, SPLIT, 2.0X12 1
19 9420120180 PIN, SPLIT, 2.0X18 2
20 9501140000 RUBBER, CHANGE PEDAL 1
21 9501473100 SPRING A, BRAKE ROD 1
22 9501532001 JOINT B, BRAKE ARM 1
23 9501542000 NUT B, BRAKE ROD ADJUSTING 1
24 957010602000 BOLT, FLANGE, 6X20 1
25 957010803500 BOLT, FLANGE, 8X35 1
26 9621108000 BALL, STEEL, #8(1/4) 1
