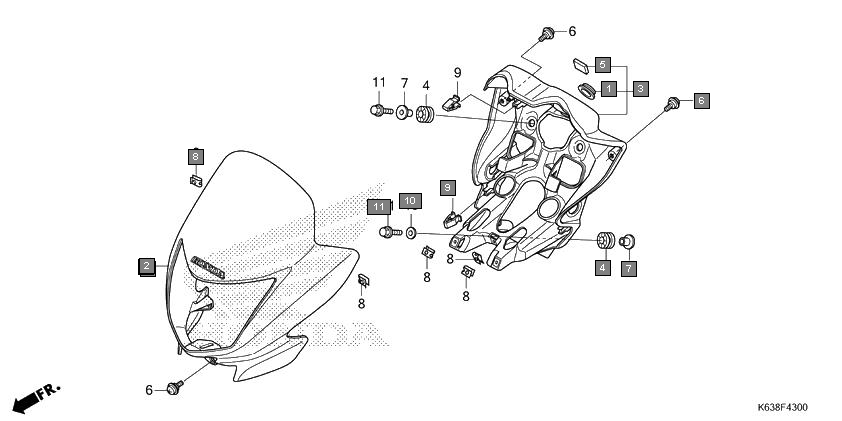

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 37312K67900 | GROMMET, COMBINATION SWITCH | 1 |
2 | 61300K63900ZA | VISOR SET, FR.(WL) *TYPE4* | 1 |
3 | 61300K63900ZB | VISOR SET, FR.(WL) *TYPE3* | 1 |
4 | 61300K63900ZD | VISOR SET, FR.(WL) *TYPE1* | 1 |
5 | 61300K63900ZC | VISOR SET, FR.(WL) *TYPE2* | 1 |
6 | 61310K23D60 | COVER ASSY., HEADLIGHT RR. | 1 |
7 | 64615KR1860 | RUBBER, LOWER COWL MOUNTING | 4 |
8 | 86150KWS601 | EMBLEM, PRODUCT(SJS) | 1 |
9 | 90101GE0000 | SCREW, HINGE PATCH | 3 |
10 | 90310KWS900 | COLLAR, FR. COWL | 4 |
11 | 90320GC3000 | NUT, SPRING, 5MM | 5 |
12 | 90666SDAA01 | CLIP, SNAP FITTING(PO)(NATURAL) | 3 |
13 | 9410306800 | WASHER, PLAIN, 6MM | 2 |
14 | 957010602208 | BOLT, FLANGE, 6X22 | 4 |
