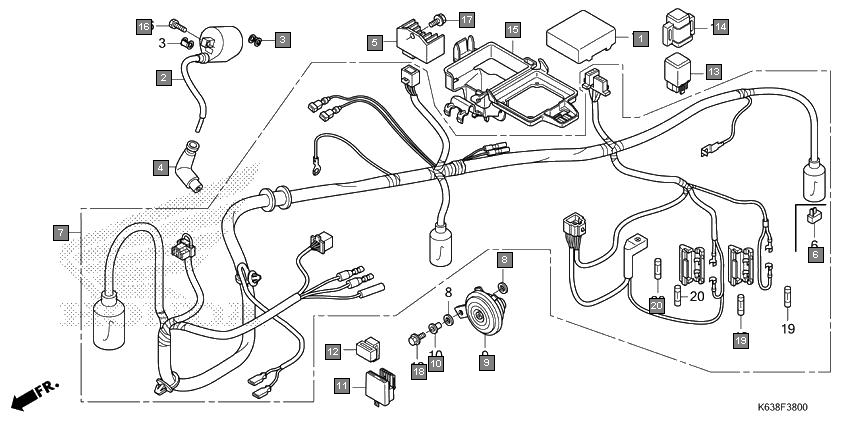

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 30410K63901 | SPARK UNIT(DENSO) | 1 |
2 | 30500K14901 | COIL ASSY., IGNITION(WINGS) (W35) | 1 |
3 | 30520GFM900 | SPACER, IGNITION COIL | 2 |
4 | 30700K14901 | CAP ASSY., NOISE SUPPRESSOR (KUNAL) | 1 |
5 | 31600K14961 | RECTIFIER COMP., REGULATE(STAR ENGINEERS) | 1 |
6 | 31700124008 | RECTIFIER ASSY., SILICON(SHINDENGEN) | 1 |
7 | 32100K63D40 | HARNESS, WIRE | 1 |
8 | 33714KL3620 | RUBBER, TAILLIGHT BRACKET | 2 |
9 | 38110K63D31 | HORN COMP. | 1 |
10 | 38117KYJT00 | COLLAR, HORN SETTING | 1 |
11 | 38301K63D21 | RELAY COMP., WINKER (STAR ENGINEERS) | 1 |
12 | 38306K14931 | SUSPENSION, WINKER RELAY (STAR ENGINEERS) | 1 |
13 | 38501KPL901 | RELAY COMP., STARTER(MULTILINK) | 1 |
14 | 38506K23910 | SUSPENSION, STARTER RELAY | 1 |
15 | 50370K14960 | HOLDER, C.D.I. UNIT | 1 |
16 | 92101060204J | BOLT, HEX., 6X20 | 2 |
17 | 957010601200 | BOLT, FLANGE, 6X12 | 1 |
18 | 957010602000 | BOLT, FLANGE, 6X20 | 1 |
19 | 9820010700 | FUSE(7A) | 2 |
20 | 9820011000 | FUSE A(10A) | 2 |
