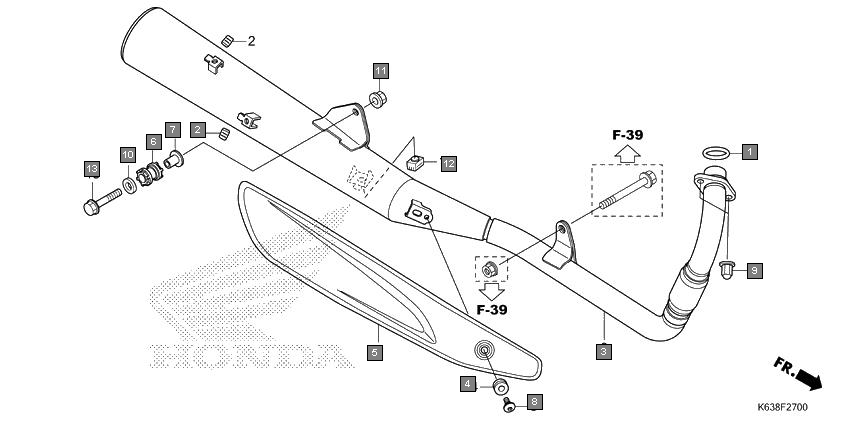

Motorcycles CD 110 Dream CB110CMDK Frame Exhaust muffler
Ref.No. Part No. Description Oty
1 18291GE2921 GASKET, EX. PIPE 1
2 18293MCAA20 RUBBER, PROTECTOR PACKING 2
3 18300K63D30 MUFFLER COMP., EX. 1
4 18345MBT610 RUBBER, PROTECTOR MOUNTING 1
5 18355K63900 COVER, MUFFLER 1
6 18421KBA900 RUBBER, MUFFLER MOUNTING 1
7 18422KBA900 COLLAR, MUFFLER MOUNTING 1
8 90113GFPB00 SCREW, PAN, 6X12 1
9 90305KSP900 NUT, EXHAUST PIPE, 8MM 2
10 90505KY4900 WASHER, PLAIN, 8MM 1
11 9405008000 NUT, FLANGE, 8MM 1
12 9501161000 RUBBER A, STAND STOPPER 1
13 958010804508 BOLT, FLANGE, 8X45 1
