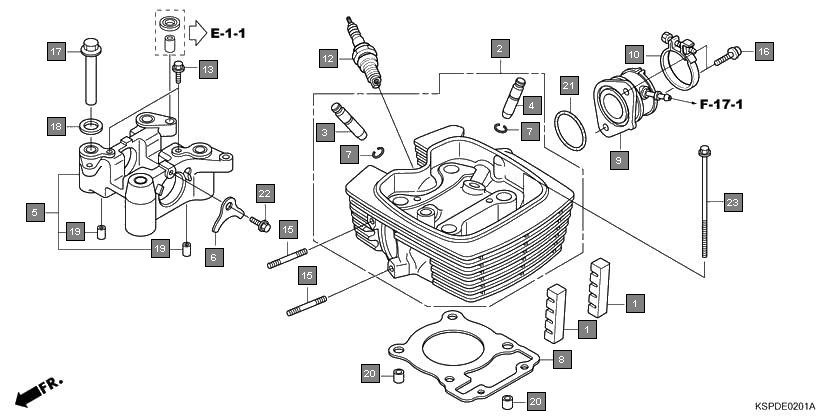

Motorcycles CB Unicorn Dazzler CBF150MC Engine Cylinder head(cbf1507/m7/m9/ma/mb/mc)
Ref.No. Part No. Description Oty
1 12200KSPB00 HEAD COMP., CYLINDER 1
2 12204KRM305 GUIDE, VALVE(O.S.)(EXHAUST SIDE) 1
3 12205KSP305 GUIDE, IN. VALVE(O.S.) 1
4 12210KSP910 HOLDER COMP., CAMSHAFT 1
5 12212KRM840 PLATE, STOPPER 1
6 12213KSP910 CLIP, VALVE GUIDE 2
7 12251KRMB41 GASKET, CYLINDER HEAD 1
8 16210KVE900 INSULATOR COMP., CARBURETOR 1
9 16217KSP910 BAND, INSULATOR 1
10 31916KRM841 PLUG, SPARK(CPR8EA-9)(NGK) 1
11 31926KRM841 PLUG, SPARK(CPR9EA-9)(NGK) 1
12 31926KSP861 PLUG, SPARK(UR4DC)(BOSCH) 1
13 90002KRM840 BOLT, FLANGE, 5X14 2
14 90035KRM840 BOLT, STUD, 8X22 2
15 90091KRM840 BOLT, FLANGE SOCKET, 6X22 2
16 90306KRM840 NUT, CYLINDER HEAD 4
17 90404KPTA00 WASHER, PLAIN, 12MM 4
18 90704KRM840 DOWEL PIN, 6X10 2
19 9430206100 DOWEL PIN, 6X10 2
20 9430306100 DOWEL PIN, 6X10 2
21 90703KRM840 DOWEL PIN, 10X12 2
22 91304KRM840 O-RING, 33.5X3.0 1
23 957010601400 BOLT, FLANGE, 6X14 1
24 957020601400 BOLT, FLANGE, 6X14 1
25 958010610500 BOLT, FLANGE, 6X105 2
26 958020610500 BOLT, FLANGE, 6X105 2
