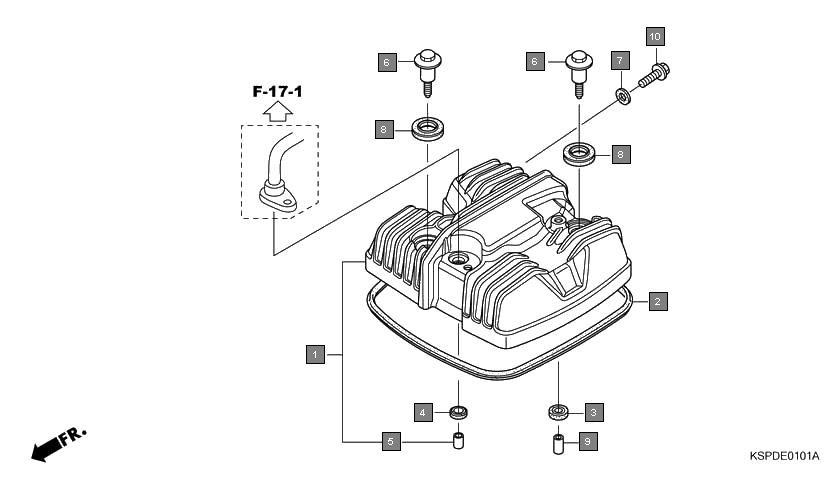

Motorcycles CB Unicorn Dazzler CBF150MC Engine Cylinder head cover(cbf1507/m7/m9/ma/mb/mc)
Ref.No. Part No. Description Oty
1 12310KSPB01 COVER COMP., CYLINDER HEAD 1
2 12391KRM840 GASKET, HEAD COVER 1
3 12396KRM840 GASKET B, HEAD COVER 1
4 12397KWG601 GASKET C, HEAD COVER 1
5 12397KYE901 GASKET C, HEAD COVER(ARAI) 1
6 12398KSPB00 COLLAR, 10MM 1
7 90003KFG000 BOLT, L. CRANKCASE COVER 2
8 90463KRM840 WASHER, SEALING, 6.2X12X1.2 1
9 90543MV9670 RUBBER, MOUNTING 2
10 90702KRM840 DOWEL PIN, 8X14 1
11 960010601200 BOLT, FLANGE, 6X12 1
