Motorcycles CB Unicorn CBF1507 Frame Wire harness(cbf1507/m7/m9/ma)

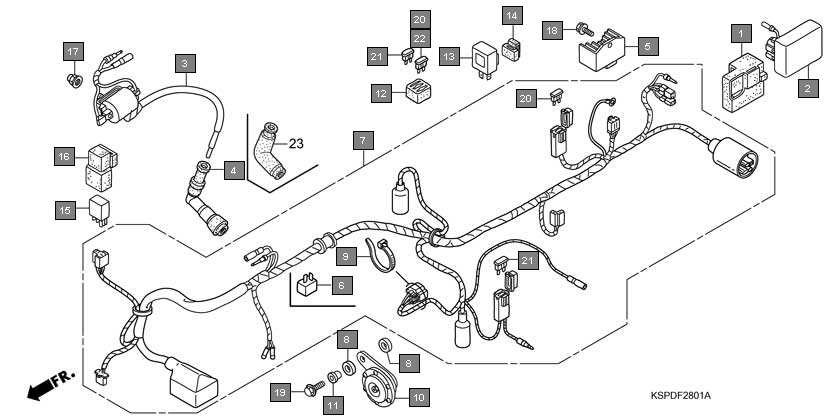

Ref.No. Part No. Description Oty
1 30401KSP911 CUSHION, C.D.I. UNIT 1
2 30410KSP861 C.D.I. UNIT 1
3 30500KSP860 COIL ASSY., IGNITION 1
4 30700KSP861 CAP ASSY., NOISE SUPPRESSOR 1
5 31600KSP861 RECTIFIER COMP., REGULATOR 1
6 31700HM5630 RECTIFIER ASSY., SILICON 1
7 32100KSP860 HARNESS, WIRE 1
8 32100KSP970 HARNESS, WIRE 1
9 33714KL3620 RUBBER, TAILLIGHT BRACKET 2
10 35701MG9950 BAND(BLACK 3.5X140) 1
11 38110KSP931 HORN COMP.(HIGH) 1
12 38117KFE701 COLLAR, HORN SETTING 1
13 38201KSP910 RUBBER, SPARE FUSE SETTING 1
14 38301KPL901 RELAY COMP., WINKER 1
15 38306GE7000 SUSPENSION, WINKER RELAY 1
16 38502KSP910 RELAY COMP., POWER (MICRO ISO 5P) 1
17 38506KSP910 SUSPENSION, POWER RELAY 1
18 90201415000 NUT, CAP, 6MM 1
19 957010601200 BOLT, FLANGE, 6X12 1
20 957010602008 BOLT, FLANGE, 6X20 1
21 9820031000 FUSE, BLADE(10A) 2
22 9820031500 FUSE, BLADE(15A) 2
23 9820032000 FUSE, BLADE(20A) 1
