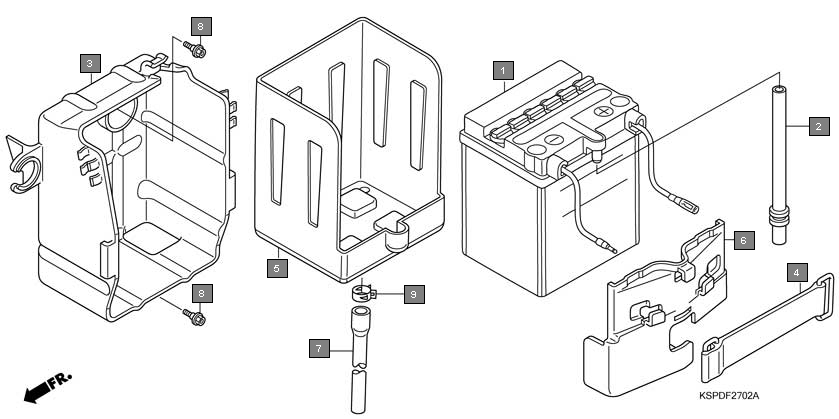

Motorcycles CB Unicorn CBF1507 Frame Battery(3)
Ref.No. Part No. Description Oty
1 31500KCH650 BATTERY(YB2.5L-C) 1
2 31502KTE910 TUBE, BATTERY BREATHER 1
3 50380KSP970 BOX, BATTERY 1
4 50381KSP970 BAND, BATTERY 1
5 50385KTE910 TRAY, BATTERY 1
6 50386KSP970 COVER, BATTERY 1
7 50388KTE910 TUBE, BATTERY TRAY 1
8 90111162000 BOLT, FLANGE, 6MM 2
9 90602KPL900 CLAMP, TUBE(D12.0) 1
