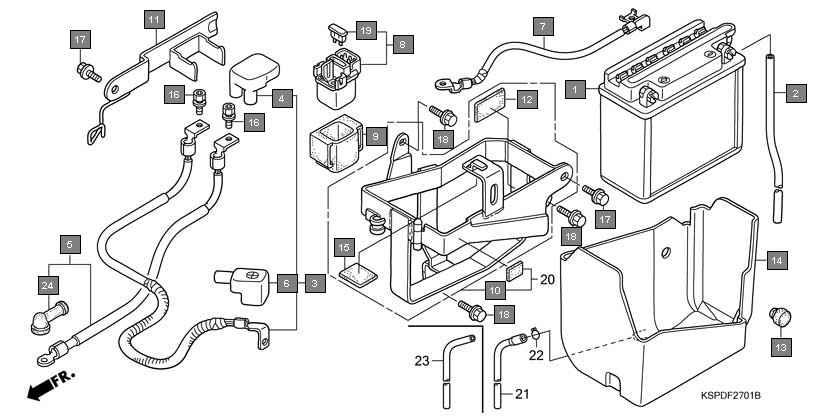

Motorcycles CB Unicorn CBF1507 Frame Battery(2)
Ref.No. Part No. Description Oty
1 31500KSP921 BATTERY(YB7B-B) 1
2 31502KSP920 TUBE, BATTERY BREATHER 1
3 32401KSP860 CABLE, STARTER MAGNETIC BATTERY 1
4 32406KSP860 COVER, STARTER MAGNETIC TERMINAL 1
5 32410KSP860 CABLE, STARTER MOTOR 1
6 32414KSP860 COVER, BATTERY TERMINAL 1
7 32601KSP920 CABLE, BATTERY EARTH 1
8 35850KEB620 SWITCH ASSY., STARTER MAGNETIC 1
9 35856KSP920 RUBBER, SHOCK 1
10 50383GB6300 RUBBER, BATTERY 1
11 50384KSP920 RUBBER, BATTERY TRAY 1
12 50385KSP920 TRAY, BATTERY 1
13 50386130690 CUSHION C, BATTERY 1
14 90111MR5000 BOLT, SOCKET, 5X9 2
15 92301060120A BOLT, RECESSED, 6X12 2
16 957010601200 BOLT, FLANGE, 6X12 3
17 9820032000 FUSE, BLADE(20A) 1
18 50380KSP860 BOX COMP., BATTERY 1
19 50388KTE910 TUBE, BATTERY TRAY 1
20 90651MK3780 CLIP, TUBE(B12.5) 1
21 32411253000 COVER, STARTER MOTOR TERMINAL 1
