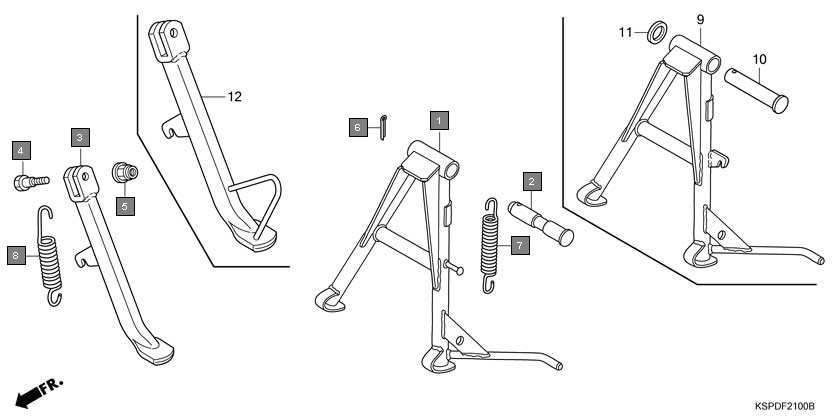

Motorcycles CB Unicorn CBF1507 Frame Stand
Ref.No. Part No. Description Oty
1 50530KSP870 BAR COMP., SIDE STAND 1
2 50530KTE910 BAR COMP., SIDE STAND 1
3 90107GN1010 SCREW, SIDE STAND PIVOT 1
4 90304KTE911 NUT, FLANGE SPECIAL, 10MM (SIMMODS MARSHALL) 1
5 9420130300 PIN, SPLIT, 3.0X30 1
6 9501471702 SPRING G, MAIN STAND 1
7 9501472102 SPRING A, SIDE STAND 1
8 50500KSP870 STAND COMP., MAIN 1
9 50500KSP860 STAND COMP., MAIN 1
10 50526KTE910 SHAFT, MAIN STAND PIVOT 1
11 90521028000 WASHER, 17X22 1
