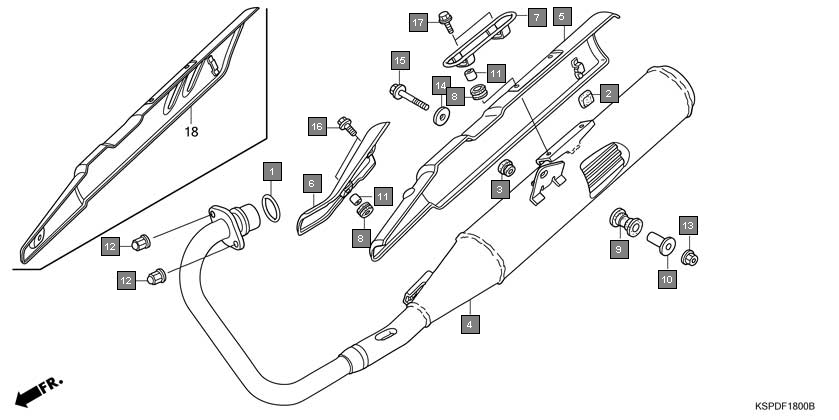

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 18291MN5650 | GASKET, EX. PIPE | 1 |
2 | 18293KPK900 | RUBBER, PROTECTOR PACKING | 1 |
3 | 18294KRY900 | RUBBER, PROTECTOR MOUNTING | 1 |
4 | 18300KSP860 | MUFFLER COMP., EX. | 1 |
5 | 18300KSP880 | MUFFLER COMP., EX. | 1 |
6 | 18312KSP900 | COVER, MUFFLER | 1 |
7 | 18317KSP901 | PROTECTOR, MUFFLER | 1 |
8 | 18345MBT610 | RUBBER, PROTECTOR MOUNTING | 3 |
9 | 18421438670 | RUBBER, MUFFLER MOUNTING | 1 |
10 | 18442KRC900 | COLLAR, MUFFLER MOUNTING | 1 |
11 | 33619459840 | COLLAR, WINKER STAY | 3 |
12 | 90305KSP900 | NUT, EXHAUST PIPE, 8MM | 2 |
13 | 9405010000 | NUT, FLANGE, 10MM | 1 |
14 | 9410310000 | WASHER, PLAIN, 10MM | 1 |
15 | 958011005500 | BOLT, FLANGE, 10X55 | 1 |
16 | 960010601207 | BOLT, FLANGE, 6X12 | 2 |
17 | 960010601600 | BOLT, FLANGE, 6X16 | 2 |
18 | 18311KSP860 | COVER COMP., FR. MUFFLER | 1 |
