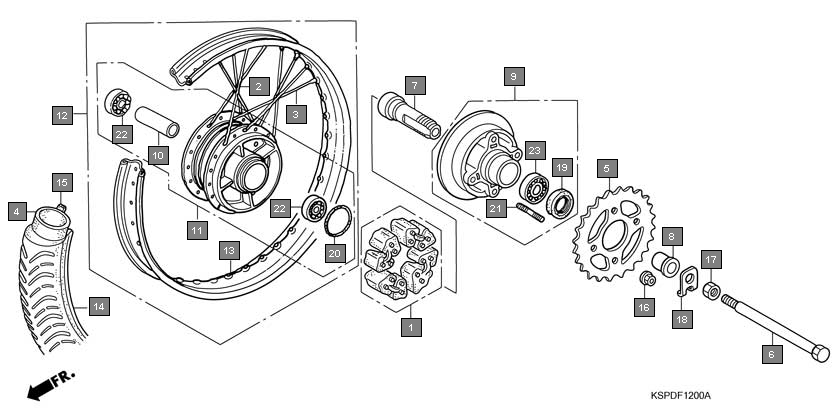

| Ref.No. | Part No. | Description | Oty |
|---|---|---|---|
| 1 | 06410KSP900 | DAMPER SET, WHEEL | 1 |
| 2 | 06420KSP900 | SPOKE SET A, RR.(OUTSIDE) | 18 |
| 3 | 06421KSP900 | SPOKE SET B, RR.(INSIDE) | 18 |
| 4 | 06427KSP900 | TUBE SET, TUFF UP | 1 |
| 5 | 41201KSP900 | SPROCKET, FINAL DRIVEN(42T) | 1 |
| 6 | 42301KSP900 | AXLE, RR. WHEEL | 1 |
| 7 | 42303KSP900 | SLEEVE, RR. WHEEL AXLE | 1 |
| 8 | 42311KSP900 | COLLAR, RR. WHEEL SIDE | 1 |
| 9 | 42615KSP930 | FLANGE SUB ASSY., FINAL DRIVEN | 1 |
| 10 | 42620KSP900 | COLLAR, RR. AXLE DISTANCE | 1 |
| 11 | 42635KSP900ZB | HUB SUB ASSY., RR. *NH105* MAT BLACK(#15-#20) | 1 |
| 12 | 42650KSP900ZB | WHEEL SUB ASSY., RR. *NH105* MAT BLACK(#15-#20) | 1 |
| 13 | 42701KSP900 | RIM, RR. WHEEL | 1 |
| 14 | 42711KCC731 | TIRE, RR.(3.00-18 6PR) | 1 |
| 15 | 42713KSP901 | FLAP, TIRE(1.60/1.85-18) | 1 |
| 16 | 90304KGH901 | NUT, U, 10MM | 4 |
| 17 | 90307KSP900 | NUT, RR. AXLE SLEEVE | 1 |
| 18 | 90559KSP900 | WASHER, L. RR. AXLE | 1 |
| 19 | 91253KSP901 | DUST SEAL, 30X47X8 | 1 |
| 20 | 91352KSP900 | O-RING, 51X2 | 1 |
| 21 | 92915100250E | BOLT, STUD, 10X25 | 4 |
| 22 | 961406302010 | BEARING, RADIAL BALL, 6302U | 2 |
| 23 | 961506005010 | BEARING, RADIAL BALL, 6005UU | 1 |
