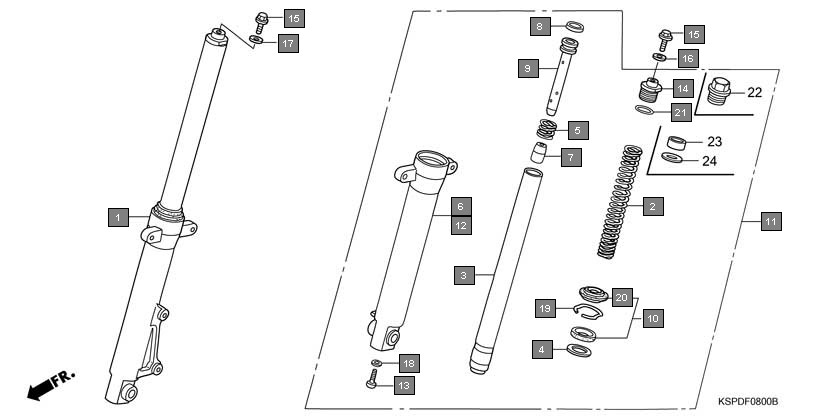

Motorcycles CB Unicorn CBF1507 Frame Front fork
Ref.No. Part No. Description Oty
1 51400KSP871 FORK ASSY., R. FR. 1
2 51400KSP862 FORK ASSY., R. FR. 1
3 51401KSP901 SPRING, FR. FORK 2
4 51401KSP871 SPRING, FR. FORK 2
5 51410KSP871 PIPE COMP., FR. FORK 2
6 51410KSP861 PIPE COMP., FR. FORK 2
7 51412KK4003 RING, BACK UP 2
8 51412KSP901 SPRING, REBOUND 2
9 51420KSP861 CASE COMP., R. FR. BOTTOM 1
10 51432KFN851 PIECE, OIL LOCK 2
11 51437KFN851 RING, PISTON 2
12 51440KSP901 PIPE, SEAT 2
13 51490GAA305 SEAL SET, FR. FORK 2
14 51500KSP871 FORK ASSY., L. FR. 1
15 51500KSP862 FORK ASSY., L. FR. 1
16 51520KSP861 CASE COMP., L. FR. BOTTOM 1
17 90116KAG901 BOLT, SOCKET, 8MM(SHOWA) 2
18 90544439930 PACKING(SHOWA) 2
19 90601354000 RING, OIL SEAL STOP 2
20 91254GAA003 DUST SEAL 2
21 91356KAG901 O-RING(SHOWA) 2
22 90123KSP871 BOLT A, FR. FORK 2
23 51403KSP861 COLLAR, SPRING 2
24 51403447731 PLATE, SPRING JOINT(SHOWA) 2
