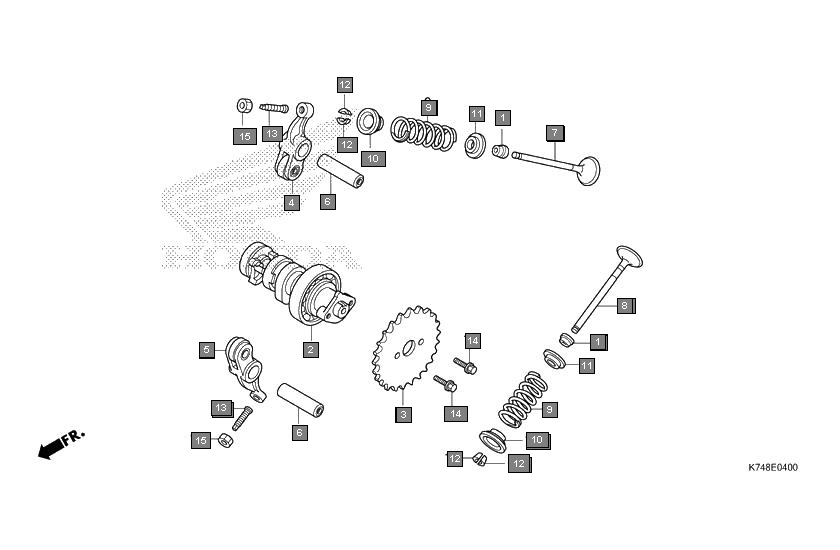

Ref.No. | Part No. | Description | Oty |
---|---|---|---|
1 | 12209GB4682 | SEAL, VALVE STEM(ARAI) | 2 |
2 | 12209KWPD01 | SEAL, VALVE STEM(SKF) | 2 |
3 | 14100KWPD01 | CAMSHAFT COMP. | 1 |
4 | 14321KWP900 | SPROCKET, CAM(34T) | 1 |
5 | 14430KWP900 | ARM COMP., IN. VALVE ROCKER | 1 |
6 | 14440KWP900 | ARM COMP., EX. VALVE ROCKER | 1 |
7 | 14461GCC000 | SHAFT, EX. ROCKER ARM (IN./EX.)(INLET SIDE) | 2 |
8 | 14711KVY900 | VALVE, IN. | 1 |
9 | 14721KVY900 | VALVE, EX. | 1 |
10 | 14751KWP900 | SPRING, VALVE | 2 |
11 | 14771GB4680 | RETAINER, VALVE SPRING | 2 |
12 | 14775KWP900 | SEAT, VALVE SPRING | 2 |
13 | 14781KPL900 | COTTER, VALVE | 4 |
14 | 90012KWW740 | SCREW, TAPPET ADJUSTING | 2 |
15 | 90083KRM840 | BOLT, KNOCK, 5MM | 2 |
16 | 90206KPL900 | NUT, TAPPET ADJUSTING | 2 |
