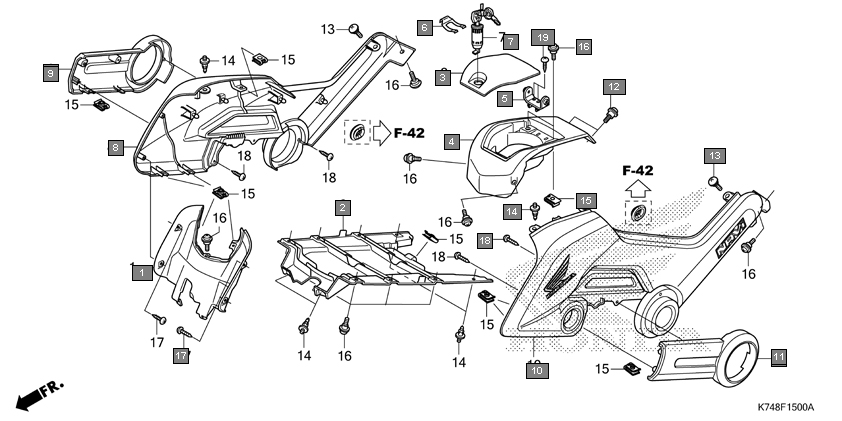

Scooters Navi NVA110BK Frame Tank cover/side cover
Ref.No. Part No. Description Oty
1 64410K74N00 COVER, TANK CENTER 1
2 64420K74N00 COVER, FUEL TANK LOWER 1
3 64430K74N00 LID, TANK 1
4 64440K74N00 COVER, TANK 1
5 64450K74N00 HINGE, TANK 1
6 75581GN8920 SPRING, LOCK KEY SETTING 1
7 77239K74N01 KEY, FUEL LOCK 1
8 83500K74N80ZG COVER SET, R. SIDE(WL) *TYPE3* 1
9 83500K74N80ZA COVER SET, R. SIDE(WL) *TYPE9* 1
10 83500K74N80ZK COVER SET, R. SIDE(WL) *TYPE1* 1
11 83500K74N80ZJ COVER SET, R. SIDE(WL) *TYPE10* 1
12 83500K74N80ZD COVER SET, R. SIDE(WL) *TYPE6* 1
13 83500K74N80ZC COVER SET, R. SIDE(WL) *TYPE7* 1
14 83500K74N80ZE COVER SET, R. SIDE(WL) *TYPE5* 1
15 83500K74N80ZF COVER SET, R. SIDE(WL) *TYPE4* 1
16 83500K74N80ZB COVER SET, R. SIDE(WL) *TYPE8* 1
17 83500K74N80ZH COVER SET, R. SIDE(WL) *TYPE2* 1
18 83520K74N00ZB COVER, R. SIDE LOWER *NH303M* MAT AXIS GRAY METALLIC 1
19 83520K74N00ZA COVER, R. SIDE LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
20 83600K74N80ZD COVER SET, L. SIDE(WL) *TYPE6* 1
21 83600K74N80ZE COVER SET, L. SIDE(WL) *TYPE5* 1
22 83600K74N80ZH COVER SET, L. SIDE(WL) *TYPE2 1* 1
23 83600K74N80ZF COVER SET, L. SIDE(WL) *TYPE4* 1
24 83600K74N80ZB COVER SET, L. SIDE(WL) *TYPE8* 1
25 83600K74N80ZJ COVER SET, L. SIDE(WL) *TYPE10* 1
26 83600K74N80ZC COVER SET, L. SIDE(WL) *TYPE7* 1
27 83600K74N80ZA COVER SET, L. SIDE(WL) *TYPE9* 1
28 83600K74N80ZK COVER SET, L. SIDE(WL) *TYPE1* 1
29 83600K74N80ZG COVER SET, L. SIDE(WL) *TYPE3* 1
30 83620K74N00ZB COVER, L. SIDE LOWER *NH303M* MAT AXIS GRAY METALLIC 1
31 83620K74N00ZA COVER, L. SIDE LOWER *NHB60M* MAT SELENE SILVER METALLIC 1
32 90102GB2720 SCREW, PAN, 5X16 2
33 90104KT2000 SCREW, SPECIAL, 6X14 2
34 90116SP0003 CLIP, BUMPER SEAL 6
35 90320GC3000 NUT, SPRING, 5MM 11
36 91509GE2760 SCREW, PAN, 5X11.5 13
37 9390324480 SCREW, TAPPING, 4X16 4
38 9390334380 SCREW, TAPPING, 4X12 10
39 9390324280 SCREW, TAPPING, 4X10 2
